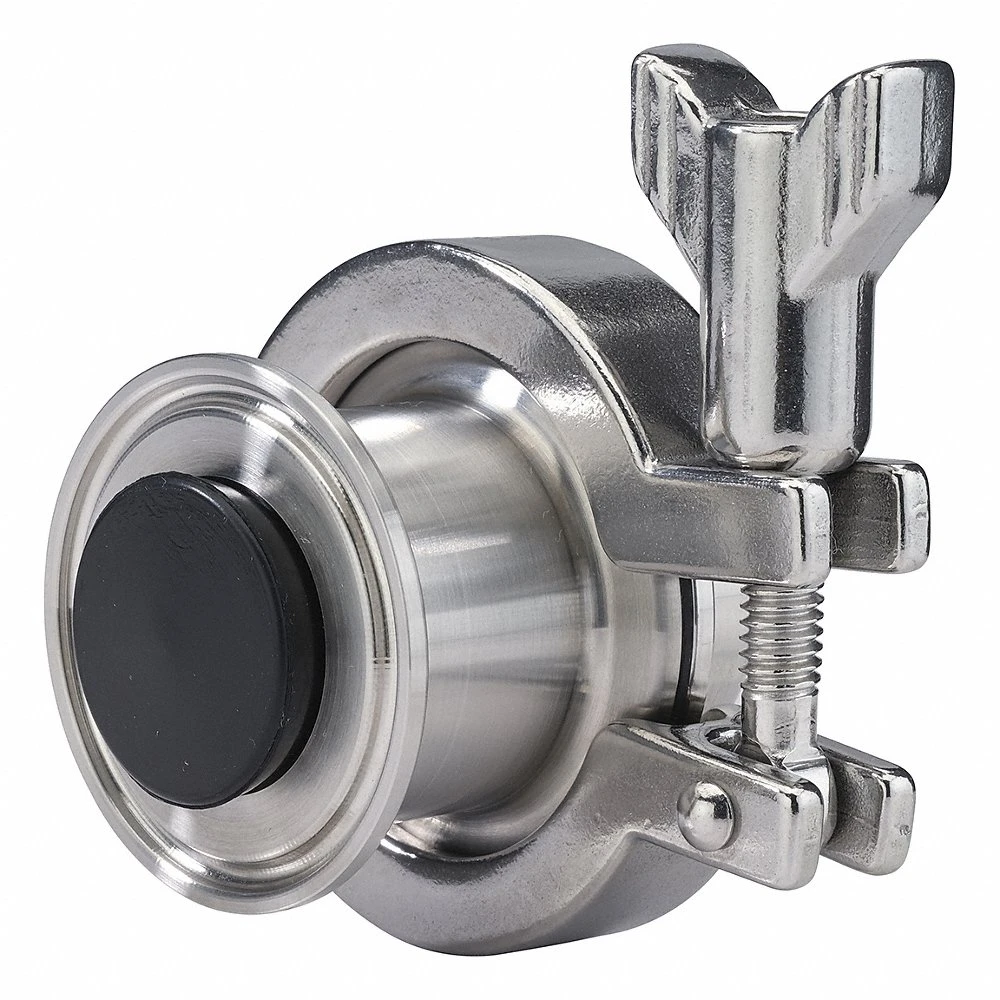

| Item | Check Valve |
| Connection | Clamp |
| Grade | Grade T316L |
| Material Of Construction | Stainless Steel |
| Overall Length | 10" |
| Seat Material | EPDM |
| Surface Finish | 32 Ra I.D./O.D |
| Temp. Range | 0°F to +200°F |
| Tube Size | 1 1/2" |
| 3-a Compliance | Meets 3A Sanitary Standards |
| Average Surface Roughness (ra) | 32 µin. |
| Body Material | 316L Stainless Steel |
| Check Mechanism | Poppet |
| Check Mechanism Material | 316L Stainless Steel |
| Connection Size - Side 1 | 1 1/2" |
| Connection Size - Side 2 | 1 1/2" |
| Connection Type | Clamp x Clamp |
| Connection Type - Side 1 | Clamp |
| Connection Type - Side 2 | Clamp |
| For Media | Fluids |
| Includes Counterweight | No Counterweight |
| Max. Pressure (cwp) | 60 psi |
| Media Temp. Range | 0°F to 200°F |
| Mounting Orientation | Horizontal, Vertical |
| Operating Temperature - Maximum | 200°F |
| Operating Temperature - Minimum | 0°F |
| Pipe Size | 1 1/2" |
| Seal Material | EPDM |
| Silent Check | Standard |
| Spring Material | 316L Stainless Steel |
| Standards | FDA |
| Vacuum Service Rating | Not Rated |
| Valve Body Style | Inline |
| Valve Series | EG62C-6L |
| Ship weight (kg) | 0.59 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 25.4 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
| Model | Item | Overall Length | Temp. Range | Tube Size | Price | |
|---|---|---|---|---|---|---|
| 45C-6.5-V | Spring Check Valve | 3.5" | 0 to 200 Degrees F | 1/2" | €423.20 | |
| 45C-6.75-V | Spring Check Valve | 3.5" | 0 to 200 Degrees F | 3/4" | €459.00 | |
| 45C-61.0-V | Spring Check Valve | 4.125" | 0 to 200 Degrees F | 1" | €414.08 | |
| 45C-61.5-V | Spring Check Valve | 4 9/16" | 0 to 200 Degrees F | 1.5" | €407.95 | |
| 45C-62.0-V | Spring Check Valve | 5 1/16" | 0 to 200 Degrees F | 2" | €507.11 | |
| 45C-62.5-V | Spring Check Valve | 5.375" | 0 to 200 Degrees F | 2.5" | €835.91 | |
| 45C-63.0-V | Spring Check Valve | 6.125" | 0 to 200 Degrees F | 3" | €1,002.94 |
