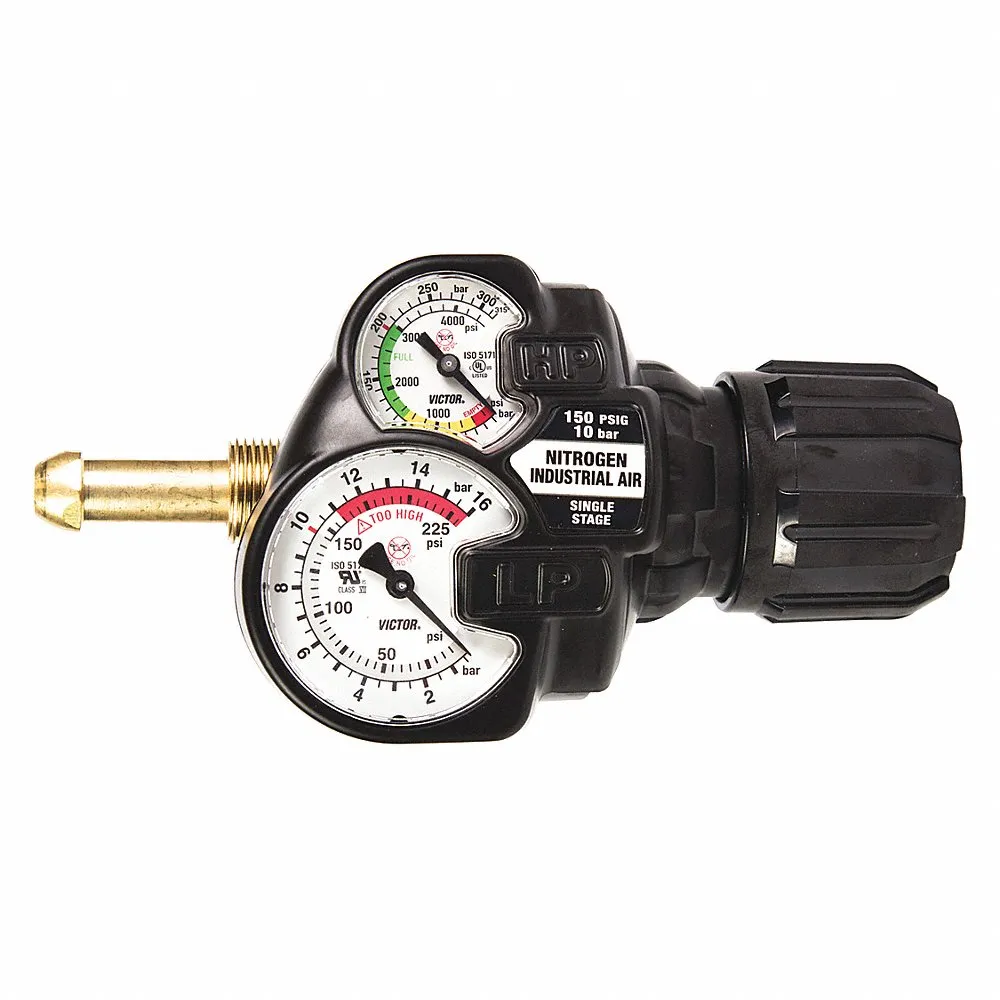

| Item | Gas Regulator |
| Application | General Purpose |
| Body Dia. | 3 16/25" |
| Body Material | Brass |
| Cga Number | CGA 590 |
| Compatible Gas Type | Industrial Air |
| Control Type | Knob |
| Delivery Pressure Range | 5 psi to 150 psi |
| Diaphragm Material | Stainless Steel |
| Duty Rating | Heavy Duty |
| Features | Consistent Pressure And Flow Delivery, Fully Enclosed, Highly Visible Modular Gauges For More Clarity With Robust Metal Gauge Guard, High Resistance To Oxygen Related Fires, Robust Seat Gives Optimum Performance, Slam Knob Absorbs Impact In The Event Of A Cylinder Fall |
| For Gas Type | Industrial Air |
| Gauge Diameter | 2 1/2" |
| Height | 4" |
| Inlet Connection Gender | Female |
| Inlet Thread Direction | Left Hand |
| Max. Inlet Pressure | 3000 psig |
| Max. Outlet Pressure | 150 psig |
| Maximum Gauge Outlet Pressure | 4000 psig |
| Min. Outlet Pressure | 5 psig |
| Mounting Type | Cylinder |
| Number Of Stages | 1 |
| Outlet Connection Gender | Female |
| Outlet Connection Size | 5/8"-18 |
| Outlet Connection Type | UNF |
| Outlet Thread Direction | Left Hand |
| Outlet Thread Gender | Female |
| Overall Depth | 4" |
| Regulator Application | General Purpose |
| Regulator Supply Type | Cylinder |
| Width | 6" |
| Body Diameter | 3.64" |
| Inlet Connection | CGA 590 |
| Inlet Connection Size | 0.965"-14 |
| Inlet Connection Type | NGO |
| Inlet Pressure (maximum) | 3000 psig |
| Outlet Connection | 5/8"-18 F LH |
| Outlet Pressure (maximum) | 150 psig |
| Outlet Pressure (minimum) | 5 psig |
| Overall Height | 4" |
| Overall Width | 6" |
| Regulator Series | Edge 2 |
| Standards | ETL LISTED, UL252 |
| Ship weight (kg) | 1.89 |
| Ship height (cm) | 10.16 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 15.24 |
| Country of Origin | MX |
