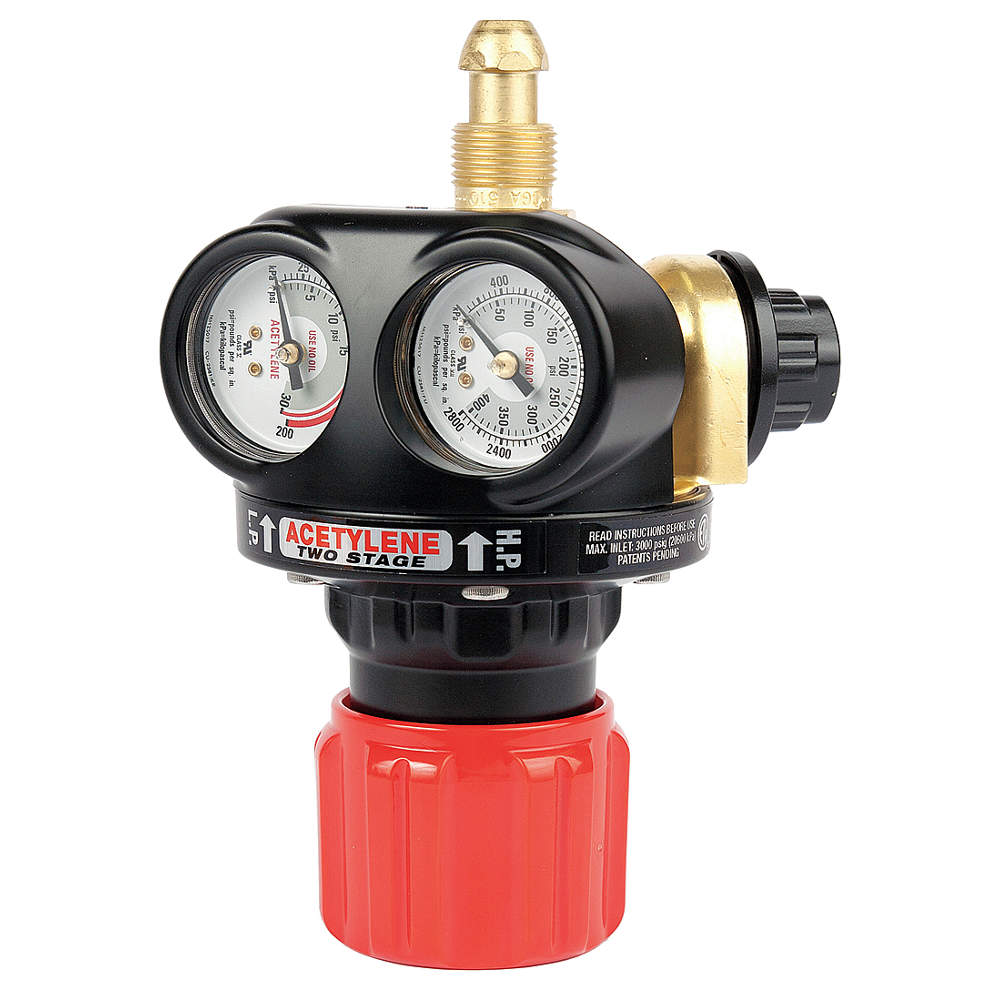

VICTOR 0781-5230 Regulator Cylinder Acetylene Cga-510
Get it by Tuesday, Jun 17
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Gas Regulator |
| Body Dia. | 4 18/25" |
| Body Material | Brass |
| Coefficient Of Volume | 0.14 |
| Compatible Gas Type | Acetylene |
| Control Type | Knob |
| Delivery | 750 SCFH |
| Delivery Pressure Range | 2 psi to 15 psi |
| Diaphragm Material | Fabric Reinforced Neoprene |
| Gas Service | Acetylene |
| Gauge Size | 1 1/2" |
| Gauges Delivery Pressure | 30 psi |
| Includes | Built In Gauge Guard, Color Coded Knob |
| Inlet Connection Gender | Female |
| Max. Inlet Pressure | 3000 psi |
| Outlet Connection Gender | Male |
| Outlet Thread Size | 9/16-18 |
| Overall Length | 4 1/2" |
| Regulator Capacity | Heavy Duty |
| Regulator Supply Type | Cylinder |
| Supply Pressure Gauge | 400 psi |
| Thread Direction | Left Hand |
| Thread Type | Fine |
| Width | 6.85" |
| Application | Industrial And General Fabrication, Light Fabrication, Repair And Maintenance, Structural Steel Fabrication |
| Body Diameter | 4.72" |
| Cga Number | CGA 510 |
| Features | Advanced Design, Compact Layout, Durable Construction, Perfect Blend Of form and Functionality, The Edge Series is Designed with a Single Impact Point Configured to Help Protect Elements Critical to System Integrity, User Friendly Architecture |
| For Gas Type | Acetylene |
| Gauge Diameter | 1 1/2" |
| Inlet Connection | CGA 510 |
| Inlet Connection Size | 0.885"-14 |
| Inlet Connection Type | NGO |
| Inlet Pressure (maximum) | 3000 psig |
| Inlet Thread Direction | Left Hand |
| Maximum Gauge Outlet Pressure | 400 psig |
| Mounting Type | Cylinder |
| Number Of Stages | 2 |
| Outlet Connection | 9/16"-18 M LH |
| Outlet Connection Size | 9/16"-18 |
| Outlet Connection Type | UNF |
| Outlet Pressure (maximum) | 15 psig |
| Outlet Pressure (minimum) | 2 psig |
| Outlet Thread Direction | Left Hand |
| Overall Depth | 4.72" |
| Overall Height | 4 2/5" |
| Overall Width | 6.85" |
| Regulator Series | ETS4 Edge |
| Standards | ASTM G175, ETL LISTED, UL252 |
| Ship weight (kg) | 2.44 |
| Ship height (cm) | 13.21 |
| Ship length (cm) | 24.13 |
| Ship width (cm) | 19.56 |
| HS code | 8481100090 |
| Country of Origin | MX |
| Model | Body Dia. | Body Material | Cga Connection Inlet | Cga Connection Outlet | Coefficient Of Volume | Cylinder Gas | Delivery Pressure Range | Diaphragm Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000-9485 | 1.97" | Nickel Plated Brass | - | - | 0.094 | - | 1 to 22 psi | Stainless Steel | €857.17 | |
| 4000-9389 | 1.97" | Nickel Plated Brass | - | - | 0.094 | - | 1 to 150 psi | Stainless Steel | €762.86 | |
| 4000-0052 | 1.97" | Nickel Plated Brass | - | - | 0.094 | - | 1 to 22 psi | Stainless Steel | €792.62 | |
| 4000-0053 | 1.97" | Nickel Plated Brass | - | - | 0.094 | - | 1 to 150 psi | Stainless Steel | €822.25 | |
| 4000-0054 | 1.97" | Nickel Plated Brass | - | - | 0.094 | - | 1 to 22 psi | Stainless Steel | €719.17 | |
| 4000-9388 | 1.97" | Nickel Plated Brass | - | - | 0.094 | - | 1 to 150 psi | Stainless Steel | €762.86 | |
| 4000-9376 | 1.97" | Nickel Plated Brass | - | - | 0.094 | - | 1 to 22 psi | Stainless Steel | €805.61 |
