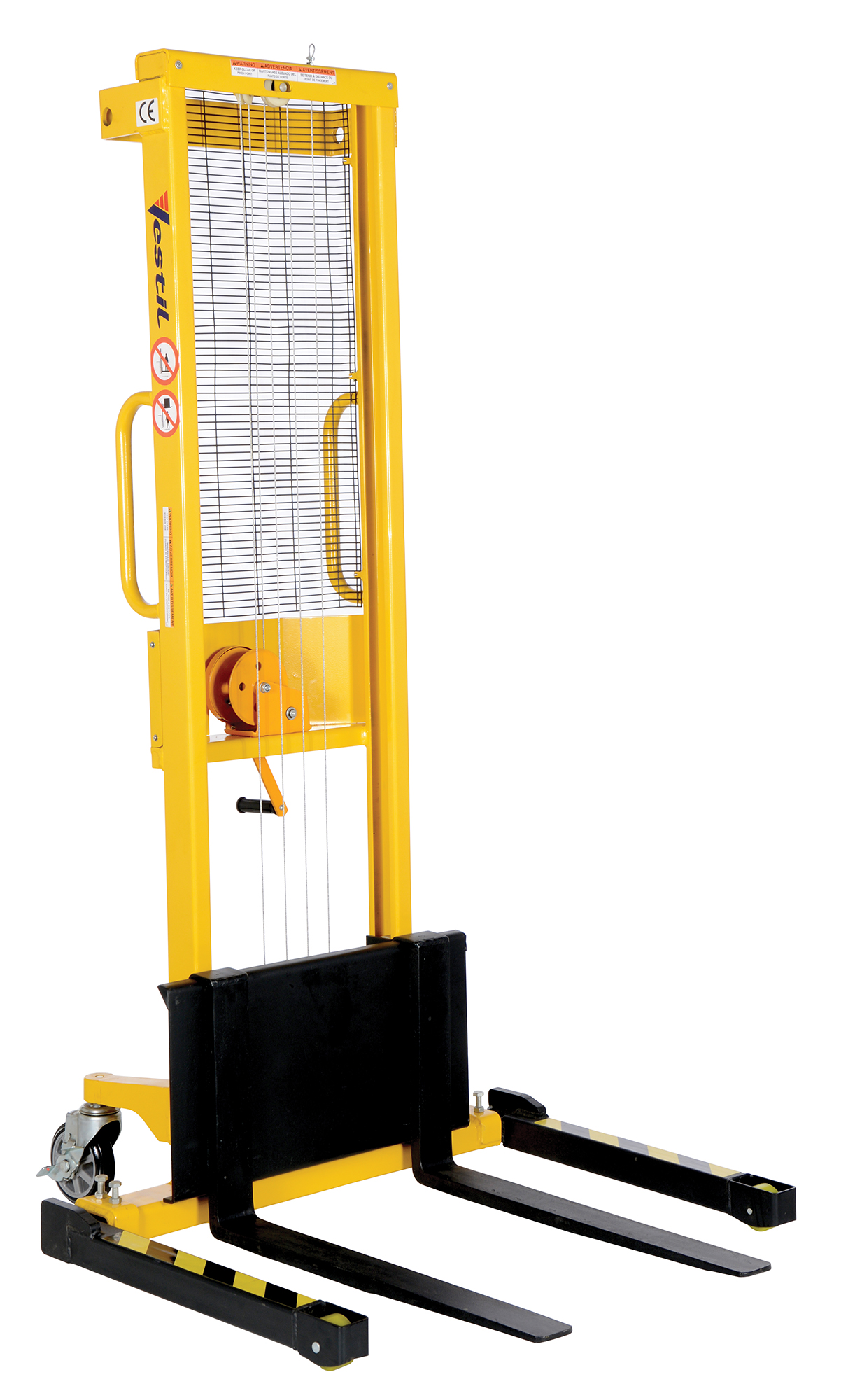

VESTIL VWS-770-AA Stacker With Adjustable Manual Hand Winch, 770 lb., Black/Yellow, Steel
Due to weight and dimension restrictions, please request a shipping quote
€1,378.89 /unit
Request a Quote
Payment
Due to weight and dimension restrictions, please request a shipping quote
Payment
| Item | Stacker |
| Adjustable Forks | Yes |
| Adjustable Legs | Yes |
| Capacity | 770 lbs. |
| Fork Length | 30" |
| Fork Width | 3.13" |
| Front Caster Dia. | 4" |
| Front Caster Material | Poly On Poly |
| Front Wheel Dia. | 4" |
| Height | 78" |
| Horizontal Load Center | 16" |
| Includes | Operation Hand Winch |
| Leg Type | Straddle |
| Length | 46" |
| Lift Per Handle Revolution | 3/4" |
| Lowered Height | 1.562" |
| Material | Steel |
| Max. Fork Outside Dia. | 26 3/4" |
| Max. Leg Inside Dia. | 47 1/4" |
| Max. Lifting Height | 59" |
| Max. Travel Distance | 57.438" |
| Max. Width Between Forks | 26 3/4" |
| Max. Width Between Legs | 54" |
| Min. Fork Outside Dia. | 6 1/4" |
| Min. Leg Inside Dia. | 35 1/2" |
| Min. Lifting Height | 1 14/25" |
| Min. Width Between Forks | 6 1/4" |
| Min. Width Between Legs | 42 1/4" |
| Number Of Casters | 4 |
| Operation | Hand Winch |
| Overall Depth | 47" |
| Power Source | Manual |
| Raised Height | 59" |
| Rear Caster Dia. | 5.9" |
| Rear Caster Material | Poly On Poly |
| Width | 42" |
| Ship weight (kg) | 162.45 |
| Ship height (cm) | 208.28 |
| Ship length (cm) | 121.92 |
| Ship width (cm) | 111.76 |
| HS code | 8428900290 |
| Country of Origin | CN |
A. The AA suffix stands for adjustable forks that are suitable with pallets and skids.
A.
A. The platform is constructed of chromed steel having a 9-gauge thickness.
A. The distance from the wheel base to the end of the fork is 12 inches.
| Product | Model | Leg Width | Length | Max. Travel Distance | Min. Lift Height | Min. Width Between Forks | Min. Width Between Legs | Overall Depth | Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
VWS-770-FF | 4" | 46.19" | 55.4" | 3.6" | 20.68" | 21.18" | 46.1875" | 21.69" | €1,349.18 | RFQ
|
