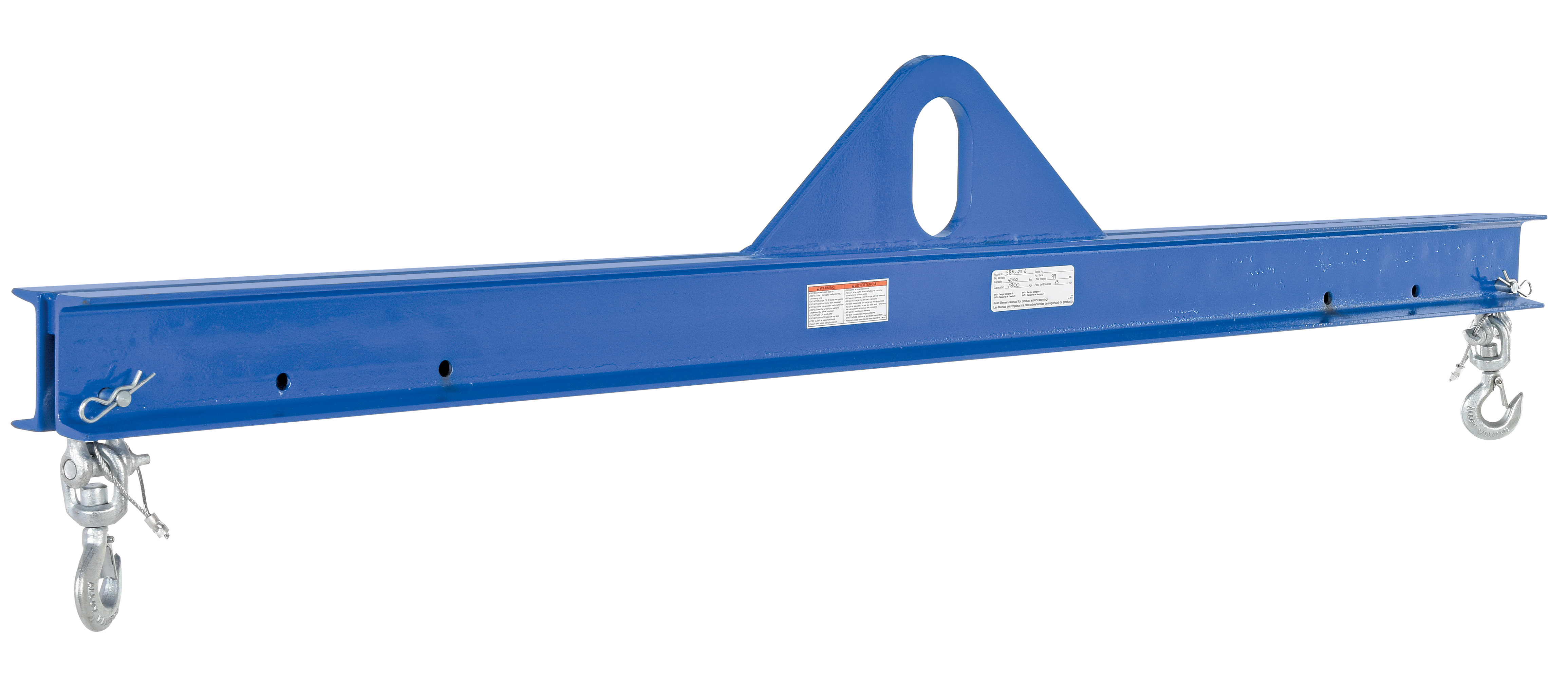

VESTIL SBM-40-6 Economy Spreader Beam, 4000 Lb. Capacity, 72 Inch Size
Due to weight and dimension restrictions, please request a shipping quote
€737.11 /unit
Request a Quote
Payment
Due to weight and dimension restrictions, please request a shipping quote
Payment
| Item | Adjustable Lifting Beam |
| Attachment Type | Chain Hoist |
| Bail Height | 5" |
| Bail Thickness | 3/4" |
| Bail Width | 3" |
| Color | Blue |
| Headroom | 14 7/8" |
| Height | 17 5/8" |
| Includes | Includes (2) 1 Ton. Swivel Hooks, Spreader Adjusts 45" To 69" |
| Length | 72" |
| Load Capacity | 4000 lbs. |
| Material | Steel |
| Max. Spread | 69" |
| Min. Spread | 45" |
| Number Of Swivel Hook | 2 |
| Swivel Hook Capacity | 1 ton. |
| Usable Bail Width | 3" |
| Width | 4 1/4" |
| Ship weight (kg) | 66.15 |
| Ship height (cm) | 22.86 |
| Ship length (cm) | 182.88 |
| Ship width (cm) | 43.18 |
| HS code | 8431491090 |
| Country of Origin | US |
| Product | Model | Headroom | Height | Includes | Item | Length | Load Capacity | Swivel Hook Capacity | Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SBM-10-10 | 14" | - | - | Speed Bump | - | - | - | - | €699.99 | |
 |
SBM-10-12 | 14" | 16 1/4" | Includes (2) 1/2 ton. Swivel Hooks, Spreader Adjusts 117" to 141" | Adjustable Lifting Beam | 144" | 1000 lbs. | 1/2 ton. | 3.94" | €952.49 | |
 |
SBM-10-3 | 14" | 16 1/4" | Includes (2) 1/2 ton. Swivel Hooks, Spreader Adjusts 21" to 33" | Adjustable Lifting Beam | 36" | 1000 lbs. | 1/2 ton. | 3.56" | €482.48 | |
 |
SBM-10-4 | 14" | 16 1/4" | Includes (2) 1/2 ton. Swivel Hooks, Spreader Adjusts 33" to 45" | Adjustable Lifting Beam | 48" | 1000 lbs. | 1/2 ton. | 3.56" | €504.88 | |
 |
SBM-10-6 | 14" | 16 1/4" | Includes (2) 1/2 ton. Swivel Hooks, Spreader Adjusts 45" to 69" | Adjustable Lifting Beam | 72" | 1000 lbs. | 1/2 ton. | 3.56" | €516.49 | RFQ
|
 |
SBM-10-8 | 14" | 16 1/4" | Includes (2) 1/2 ton. Swivel Hooks, Spreader Adjusts 69" to 93" | Adjustable Lifting Beam | 96" | 1000 lbs. | 1/2 ton. | 3.56" | €635.34 | RFQ
|
 |
SBM-20-10 | 15" | 17 1/4" | Includes (2) 1/2 ton. Swivel Hooks, Spreader Adjusts 93" to 117" | Adjustable Lifting Beam | 120" | 2000 lbs. | 1/2 ton. | 4 1/4" | €802.89 |
