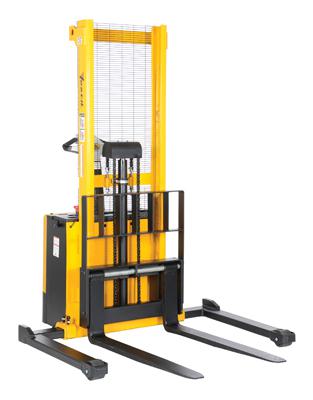

VESTIL S-62-AA Adjust Powered Lift Stacker, 62 Inch Raised
Due to weight and dimension restrictions, please request a shipping quote
€11,606.22 /unit
Request a Quote
Payment
Due to weight and dimension restrictions, please request a shipping quote
Payment
| Item | Stacker |
| Adjustable Forks | Yes |
| Adjustable Legs | Yes |
| Battery Size | 11 |
| Battery Voltage | 12V |
| Capacity | 2000 lbs. |
| Caster Material | Poly On Steel |
| Drive Caster Dia. | 10" |
| Drive Caster Width | 3 3/8" |
| Fork Length | 42" |
| Fork Width | 4" |
| Front Caster Dia. | 4" |
| Front Caster Material | Poly On Steel |
| Height | 82.687" |
| Hp | 2 hp |
| Includes | Battery Charger |
| Leg Width | 4" |
| Leg Width Range | 48" to 58" |
| Length | 69" |
| Load Center | 21" |
| Lowered Height | 2 1/4" |
| Material | Steel |
| Max. Lifting Height | 62" |
| Max. Travel Distance | 59 3/4" |
| Max. Width Between Forks | 26 3/4" |
| Max. Width Between Legs | 58" |
| Min. Lifting Height | 2 1/4" |
| Min. Width Between Forks | 8" |
| Min. Width Between Legs | 48" |
| Number Of Batteries | 2 |
| Number Of Casters | 5 |
| Number Of Drive Caster | 1 |
| Number Of Front Caster | 2 |
| Number Of Stabilizer Caster | 2 |
| Operation At Full Charge | 3 hrs. to 4 hrs. |
| Operation At Full Charge When Used Intermittently | 8 hrs. |
| Phase | Not Rated |
| Power Source | Battery Operated |
| Raised Height | 62" |
| Rear Caster Dia. | 3" |
| Rear Caster Material | Poly On Steel |
| Stabilizer Caster Dia. | 3" |
| Stabilizer Caster Width | 1 2/5" |
| Uniform Capacity At 0" To 62" | 2000 lbs. |
| Voltage | 24V |
| Wheel Material | Poly On Steel |
| Width | 58" |
| Ship weight (kg) | 609.3 |
| Ship height (cm) | 213.36 |
| Ship length (cm) | 187.96 |
| Ship width (cm) | 162.56 |
| HS code | 8428900290 |
| Country of Origin | CN |
| Product | Model | Drive Caster Dia. | Drive Caster Width | Fork Width | Fork Width Range | Front Caster Width | Height | Leg Width Range | Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
S-118-AA | 10" | 3" | 4" | 8" to 26 3/4" | 2.9" | 118" | 48" to 58" | 69" | €11,884.10 | RFQ
|
 |
S-118-FF | 10" | 3 1/8" | 5.9" | - | 3 1/8" | 78" | - | 67.31" | €11,638.05 | RFQ
|
 |
S-150-AA | 9 7/8" | 3 1/8" | 4" | 8 3/8" to 26 3/4" | 2.9" | 171.81" | 49 1/4" to 57 7/8" | 68.88" | €13,463.49 | RFQ
|
 |
S-62-FA | 10" | 3 3/8" | 5.9" | - | 2.9" | 82.69" | 38 3/16" to 50" | 67.31" | €10,393.85 | RFQ
|
 |
S-62-FF | 10" | 3 1/8" | 5.9" | - | 3 3/8" | 81.88" | - | 67.31" | - | RFQ
|
