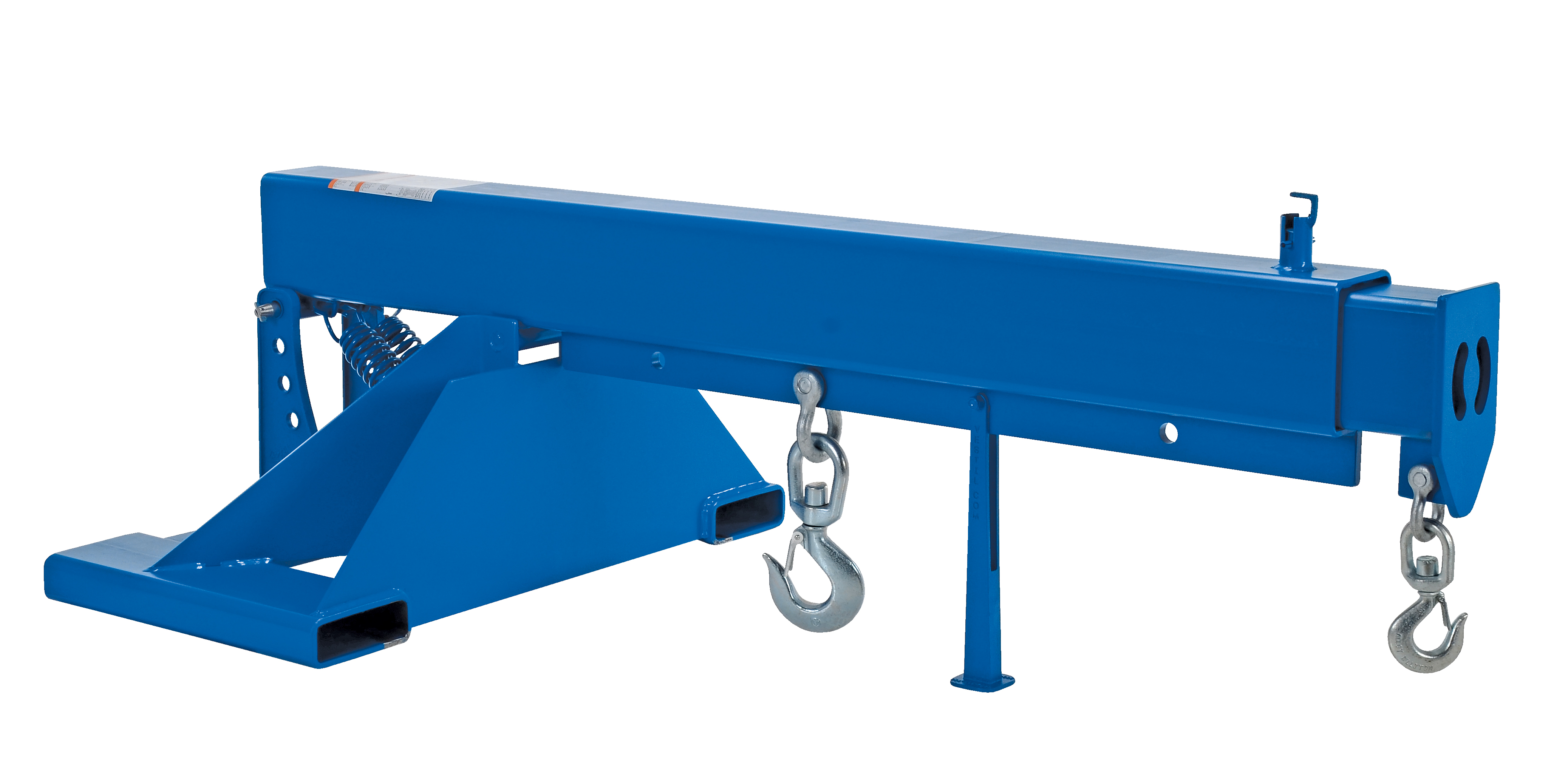

VESTIL LM-OBT-8-36 Orbit Telescoping Lift Boom, Blue / Yellow 8000 Lb. Capacity, 36 Inch Fork
Due to weight and dimension restrictions, please request a shipping quote
€4,139.88 /unit
Request a Quote
Payment
Due to weight and dimension restrictions, please request a shipping quote
Payment
| Item | Telescoping Orbital Forklift Boom |
| Boom Type | Telescoping |
| Capacity | 8000 lbs. |
| Chain Length | 36" |
| Compatible Fork Thickness | 2 1/4" |
| Depth | 85 1/4" |
| Extended Hook Height | 76.562" |
| Extended Length | 145 1/4" |
| Extension Color | Yellow |
| Fork Pocket Center | 36" |
| Fork Pocket Height | 2 1/4" |
| Fork Pocket Size | 7 1/4" |
| Fork Pocket Width | 7 1/4" |
| Frame Color | Blue |
| Height | 28 22/25" |
| Material | Steel |
| Max. Hook Point | 144" |
| Max. Length | 148 1/2" |
| Min. Hook Point | 36" |
| Min. Length | 85 1/4" |
| Number Of Hooks | 2 |
| Number Of Vertical Adjustment Positions | 4 |
| Overall Extended Height | 96 1/8" |
| Restraint Length | 36" |
| Retracted Hook Height | 5 1/8" |
| Safety Chains | Yes |
| Single Hook Capacity At 108" | 3500 lbs. |
| Single Hook Capacity At 120" | 3000 lbs. |
| Single Hook Capacity At 132" | 2600 lbs. |
| Single Hook Capacity At 144" | 2200 lbs. |
| Single Hook Capacity At 36" | 8000 lbs. |
| Single Hook Capacity At 48" | 6650 lbs. |
| Single Hook Capacity At 60" | 6000 lbs. |
| Single Hook Capacity At 72" | 5300 lbs. |
| Single Hook Capacity At 84" | 4650 lbs. |
| Single Hook Capacity At 96" | 4000 lbs. |
| Width | 44" |
| Ship weight (kg) | 331.65 |
| Ship height (cm) | 88.9 |
| Ship length (cm) | 215.9 |
| Ship width (cm) | 111.76 |
| HS code | 8428900290 |
| Country of Origin | US |
| Product | Model | Capacity | Compatible Fork Thickness | Depth | Extended Hook Height | Extended Length | Fork Pocket Center | Fork Pocket Height | Fork Pocket Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
LM-OBT-3-24 | 3000 lbs. | 2.5" | 40.12" | 78 5/16" | 146 5/8" | 24" | 2 1/2" | 7.5" | €2,258.21 | RFQ
|
 |
LM-OBT-4-24 | 4000 lbs. | 2.5" | 40.12" | 78 5/16" | 146 5/8" | 24" | 2 1/2" | 7.5" | €2,281.45 | RFQ
|
 |
LM-OBT-4-30 | 4000 lbs. | 2.5" | 40.12" | 78 5/16" | 146 5/8" | 30" | 2 1/2" | 7.5" | €2,350.50 | RFQ
|
 |
LM-OBT-4-36 | 4000 lbs. | 2.5" | 40.12" | 78 5/16" | 146 5/8" | 36" | 2 1/2" | 7.5" | €2,420.45 | RFQ
|
 |
LM-OBT-6-24 | 6000 lbs. | 2.25" | 40.12" | 78 5/16" | 146 5/8" | 24" | 2 1/4" | 7.25" | €2,857.48 | RFQ
|
 |
LM-OBT-6-30 | 6000 lbs. | 2.25" | 40.12" | 78 5/16" | 146 5/8" | 30" | 2 1/4" | 7.25" | €2,940.15 | RFQ
|
 |
LM-OBT-6-36 | 6000 lbs. | 2.25" | 40.12" | 78 5/16" | 146 5/8" | 36" | 2 1/4" | 7.25" | €3,030.41 | RFQ
|
