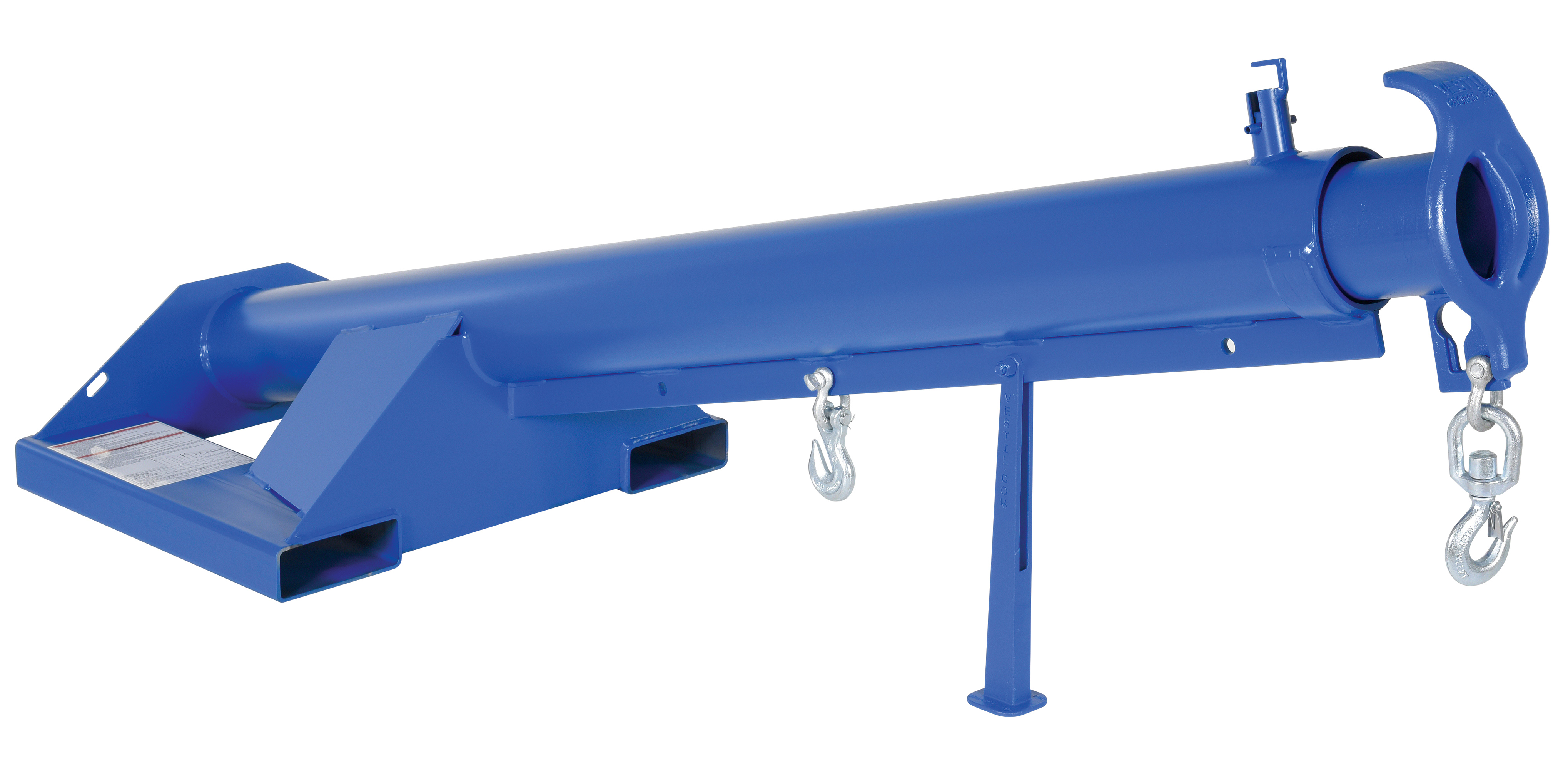

VESTIL LM-F15-4-24 Lift Master Boom, Blue / Yellow 15 Degree, 4000 Lb. Capacity, 24 Inch Fork
Due to weight and dimension restrictions, please request a shipping quote
€1,335.37 /unit
Request a Quote
Payment
Due to weight and dimension restrictions, please request a shipping quote
Payment
| Item | Telescoping Forklift Boom |
| Boom Type | Telescoping |
| Capacity | 4000 lbs. |
| Chain Length | 36" |
| Compatible Fork Thickness | 2 1/2" |
| Depth | 87" |
| Extended Hook Height | 28.344" |
| Extended Length | 147" |
| Extension Color | Yellow |
| Fork Pocket Center | 24" |
| Fork Pocket Height | 2 1/2" |
| Fork Pocket Size | 7 1/2" |
| Fork Pocket Width | 7 1/2" |
| Frame Color | Blue |
| Height | 33" |
| Material | Steel |
| Max. Hook Point | 144" |
| Max. Length | 147" |
| Min. Hook Point | 36" |
| Min. Length | 87" |
| Number Of Hooks | 2 |
| Number Of Vertical Adjustment Positions | 4 |
| Overall Extended Height | 48 1/2" |
| Restraint Length | 36" |
| Retracted Hook Height | 12.812" |
| Safety Chains | Yes |
| Single Hook Capacity At 108" | 2500 lbs. |
| Single Hook Capacity At 120" | 2250 lbs. |
| Single Hook Capacity At 132" | 2000 lbs. |
| Single Hook Capacity At 144" | 1750 lbs. |
| Single Hook Capacity At 36" | 4000 lbs. |
| Single Hook Capacity At 48" | 3750 lbs. |
| Single Hook Capacity At 60" | 3500 lbs. |
| Single Hook Capacity At 72" | 3250 lbs. |
| Single Hook Capacity At 84" | 3000 lbs. |
| Single Hook Capacity At 96" | 2750 lbs. |
| Width | 32" |
| Ship weight (kg) | 166.5 |
| Ship height (cm) | 81.28 |
| Ship length (cm) | 213.36 |
| Ship width (cm) | 81.28 |
| HS code | 8428900290 |
| Country of Origin | US |
| Product | Model | Capacity | Compatible Fork Thickness | Depth | Extended Length | Fork Pocket Center | Fork Pocket Height | Fork Pocket Width | Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
LM-1T-3-24 | 3000 lbs. | 2.5" | 86" | 151 1/4" | 24" | 2 1/2" | 7.5" | 25.88" | €1,593.11 | RFQ
|
 |
LM-1T-4-11 | 4000 lbs. | 2.5" | 86" | 151 1/4" | 11" | 2 1/2" | 7.5" | 25.88" | €1,575.01 | RFQ
|
 |
LM-1T-4-24 | 4000 lbs. | 2.5" | 86" | 151 1/4" | 24" | 2 1/2" | 7.5" | 25.88" | €1,612.21 | RFQ
|
 |
LM-1T-4-30 | 4000 lbs. | 2.5" | 86" | 151 1/4" | 30" | 2 1/2" | 7.5" | 25.88" | €1,646.19 | RFQ
|
 |
LM-1T-4-36 | 4000 lbs. | 2.5" | 86" | 151 1/4" | 36" | 2 1/2" | 7.5" | 25.88" | €1,686.38 | RFQ
|
 |
LM-1T-6-11 | 6000 lbs. | 2.25" | 86" | 151 1/4" | 11" | 2 1/4" | 7.25" | 25.88" | €2,162.66 | RFQ
|
 |
LM-1T-6-24 | 6000 lbs. | 2.25" | 86" | 151 1/4" | 24" | 2 1/4" | 7.25" | 25.88" | €2,190.32 | RFQ
|
