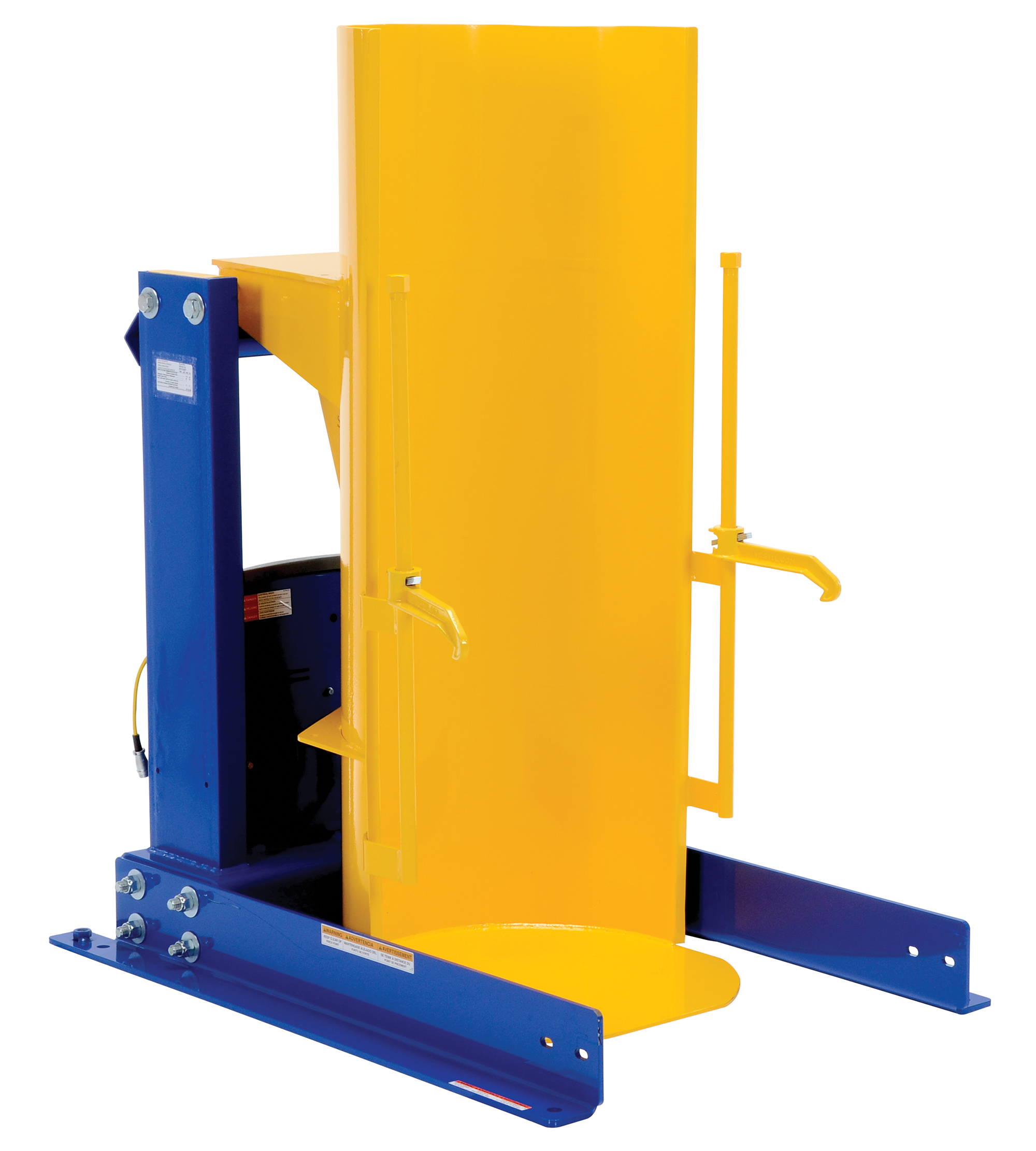

VESTIL HDD-48-15-S Stationary Hydraulic Drum Dumper, 1500 48 Inch Size
Due to weight and dimension restrictions, please request a shipping quote
€5,318.26 /unit
Request a Quote
Payment
Due to weight and dimension restrictions, please request a shipping quote
Payment
| Item | Drum Dumper |
| Assembly | Fully Assembled |
| Body Material | Steel |
| Capacity | 1500 lbs. |
| Chute Material | Steel |
| Chute Reach | 14" |
| Chute Size | 24" |
| Clearance Between Legs | 28 1/2" |
| Cord Length | 8 ft. |
| Cylinder Dia. | 2 1/2" |
| Cylinder Length | 18" |
| Depth | 71 1/2" |
| Dispense Height | 48" |
| Drum Securing Mechanism | Clamp |
| Dump Angle | 45° |
| Dump Height | 48" |
| Electrical Connection | Power Cord |
| Features | Adjustable Height Clamps, Emergency Safety Velocity Fuse, Hand Held Control, Upper Travel Limit Switch, Vertical Adjustment Drum |
| For Container Type | Drums |
| For Drum Material | Fiber, Metal, Plastic |
| For Max. Drum Dia. | 24" |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Hand Held Control Cord Length | 8 ft. |
| Height | 72" |
| Housing Color | Blue, Yellow |
| Housing Finish | Powder Coated |
| Housing Material | Steel |
| Hp | 3/4 hp |
| Leg Clearance | 28 1/2" |
| Length | 71 1/2" |
| Level Height | 72" |
| Lifting Height Max. | 116" |
| Lowered Height | 72" |
| Lowest Position Of Jaws | 27" |
| Material | Steel |
| Max. Dump Height | 48" |
| Max. Motor Hp | 3/4 hp |
| Motor Style | 56 Frame |
| Number Of Drums | 1 |
| Overall Depth | 72" |
| Overall Height | 72" |
| Overall Length | 71 1/2" |
| Overall Width | 36" |
| Overall Wxdxh | 36" x 72" x 72" |
| Phase | 1 |
| Portability | Stationary |
| Power Source | Electric Corded , Hydraulic |
| Raise Time | 42 sec. |
| Raised Height | 116" |
| Rotation Angle | 135° |
| Rotation Height | 116" |
| Rotation Height Clearance | 116" |
| Type | Stationary |
| Vertical Lift | 116" |
| Voltage | 115V |
| Width | 36" |
| For Drum Capacity | 30 gal., 55 gal. |
| Includes Battery | No |
| Operating Voltage | 115V AC |
| Weight Capacity | 1500 lbs. |
| Ship weight (kg) | 366.3 |
| Ship height (cm) | 198.12 |
| Ship length (cm) | 162.56 |
| Ship width (cm) | 101.6 |
| HS code | 8428900290 |
| Country of Origin | US |
| Product | Model | Capacity | Chute Reach | Color | Cylinder Dia. | Depth | Dump Height | Height | Max. Dump Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HDD-36-10-S-SSC | 1000 lbs. | 14" | Blue, Silver | 2 1/2" | 61 1/2" | 36" | 60" | 36" | €7,118.41 | RFQ
|
 |
HDD-36-15-S | 1500 lbs. | 14" | Blue, Yellow | 2 1/2" | 61 1/2" | 36" | 60" | 36" | €5,058.42 | RFQ
|
 |
HDD-36-15-S-SSC | 1500 lbs. | 14" | Blue, Silver | 2 1/2" | 61 1/2" | 36" | 60" | 36" | €8,015.75 | RFQ
|
 |
HDD-36-7-S | 750 lbs. | 14" | Blue, Yellow | 2 1/2" | 61 1/2" | 36" | 60" | 36" | €4,369.00 | RFQ
|
 |
HDD-36-7-S-SSC | 750 lbs. | 14" | Blue, Silver | 2 1/2" | 61 1/2" | 36" | 60" | 36" | €6,735.43 | RFQ
|
 |
HDD-48-10-S | 1000 lbs. | 14" | Blue, Yellow | 2 1/2" | 71 1/2" | 48" | 72" | 48" | €4,721.12 | RFQ
|
 |
HDD-48-10-S-SSC | 1000 lbs. | 14" | Blue, Silver | 2 1/2" | 71 1/2" | 48" | 72" | 48" | €7,505.51 | RFQ
|
