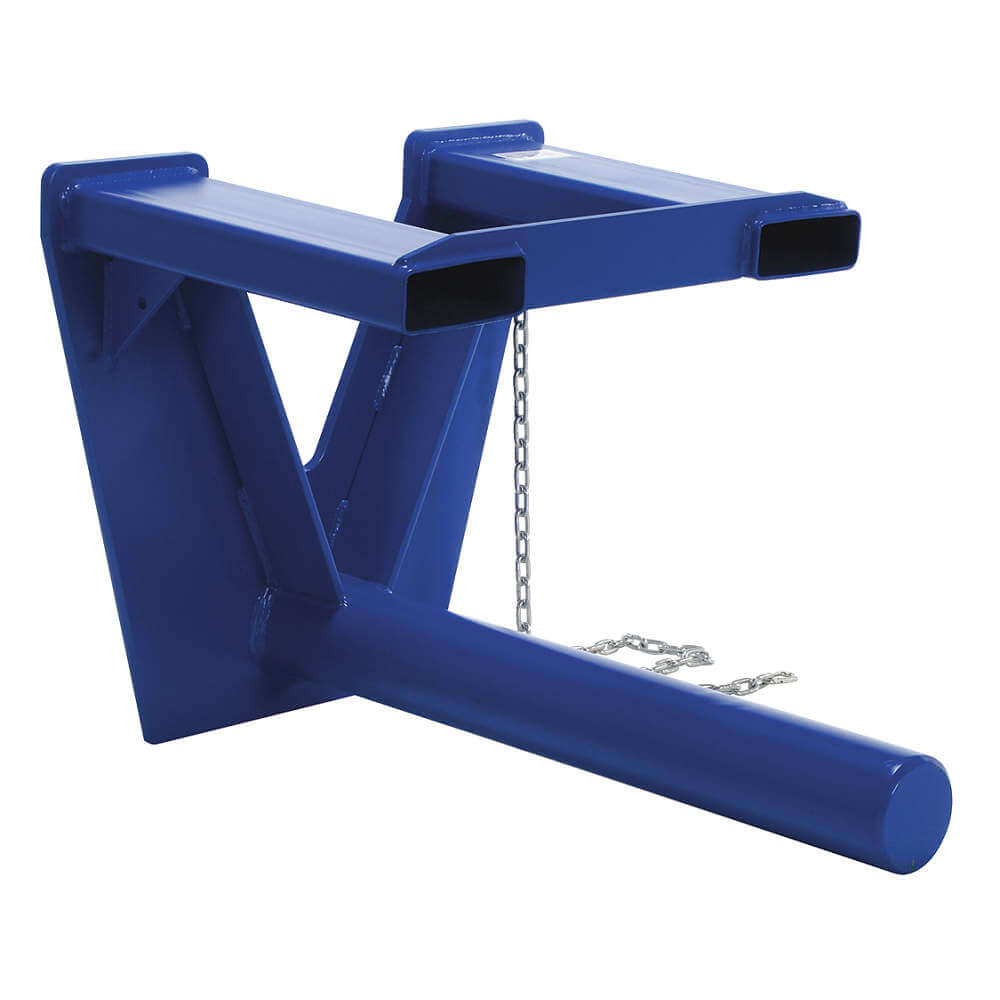

| Item | Coil Lifting Ram |
| Capacity | 3000 lbs. |
| Class Under Modification | Contact Taxonomy at taxonomysupport@syndigo.com |
| Color | Blue |
| Depth | 30" |
| Fork Pocket Center | 24" |
| Fork Pocket Height | 2 1/2" |
| Fork Pocket Size | 7-1/2" W x 2-1/2" H on 24" Center |
| Fork Pocket Width | 7.5" |
| Height | 29.25" |
| Horizontal Center of Gravity | 6 1/4" |
| Length | 30" |
| Load Capacity | 3000 lb. |
| Material | Steel |
| Max. Coil Width | 17 1/2" |
| Mount Style | Fork |
| Mounting | Fork Mounted-Inverted |
| Pole Diameter | 4-1/2" |
| Product Datasheet | vestil-rp-ccf-24-4.pdf |
| Ram Diameter | 4 1/2" |
| Usable Ram Length | 24" |
| Vertical Center of Gravity | 16 3/4" |
| Width | 34" |
| Ship weight (kg) | 119.25 |
| Ship height (cm) | 45.72 |
| Ship length (cm) | 157.48 |
| Ship width (cm) | 101.6 |
| HS code | 8428900290 |
| Country of Origin | US |
| Product | Model | Capacity | Horizontal Center of Gravity | Length | Ram Diameter | Usable Ram Length | Vertical Center of Gravity | Price | |
|---|---|---|---|---|---|---|---|---|---|
 |
CCF-24-5 | 5500 lbs. | 6 3/4" | 30" | 5 5/8" | 24" | 16 1/8" | €1,984.57 | |
 |
CCF-36-4 | 3000 lbs. | 7 3/4" | 42" | 4 1/2" | 36" | 16 1/8" | €1,693.27 | RFQ
|
 |
CCF-36-5 | 5500 lbs. | 8 3/4" | 42" | 5 5/8" | 36" | 15 3/8" | €2,050.31 | RFQ
|
 |
CCF-48-4 | 3000 lbs. | 9 3/4" | 54" | 4 1/2" | 48" | 15 5/8" | €1,822.08 | RFQ
|
 |
CCF-48-5 | 5500 lbs. | 11 1/8" | 54" | 5 5/8" | 48" | 15 1/4" | €1,643.75 | RFQ
|
 |
CCF-60-4 | 3000 lbs. | 12 1/8" | 66" | 4 1/2" | 60" | 15 1/8" | €1,883.02 | RFQ
|
 |
CCF-60-5 | 5500 lbs. | 14" | 66" | 5 5/8" | 60" | 14 1/4" | €1,760.72 | RFQ
|
