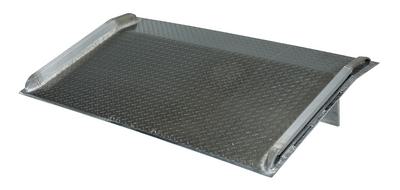

VESTIL BTA-05007236 Truck Dockboard, 5000 Lb. Capacity, 72 Inch x 36 Inch Size, Silver, Aluminium
Due to weight and dimension restrictions, please request a shipping quote
€1,095.68 /unit
Request a Quote
Payment
Due to weight and dimension restrictions, please request a shipping quote
Payment
| Item | Dock Board |
| Ansi Class | MH 30.2 |
| Bevel Angle | 11° |
| Color | Silver |
| Curb Height | 2" |
| Curb Width | 2 1/8" |
| Distance From Bend To Edge | 9" |
| Distance From Leg To Edge | 12" |
| Edge Type | Beveled |
| Equipped With | Welded Aluminum Locking Legs |
| Height | 11" |
| Height Differential | 5" |
| Length | 36" |
| Load Capacity | 5000 lbs. |
| Material | Aluminum |
| Plate Thickness | 0.312" |
| Usable Length | 36" |
| Usable Width | 67 3/4" |
| Width | 72" |
| Ship weight (kg) | 41.4 |
| Ship height (cm) | 12.7 |
| Ship length (cm) | 91.44 |
| Ship width (cm) | 182.88 |
| HS code | 7610900080 |
| Country of Origin | US |
| Product | Model | Curb Width | Height | Height Differential | Length | Plate Thickness | Usable Length | Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
BTA-05006030 | 2 1/8" | 11" | 4" | 30" | 1/4" | 30" | 60" | €748.84 | RFQ
|
 |
BTA-05005454 | 2 1/8" | 13" | 8.5" | 54" | 5/16" | 54" | 54" | €1,263.17 | |
 |
BTA-05005466 | 2 1/8" | 15" | 11" | 66" | 5/16" | 66" | 54" | €1,543.24 | RFQ
|
 |
BTA-05005478 | 2 1/4" | 16.75" | 13" | 78" | 5/16" | 78" | 54" | €1,744.72 | RFQ
|
 |
BTA-05006036 | 2 1/8" | 11.19" | 5" | 36" | 1/4" | 35 13/16" | 60" | €879.17 | RFQ
|
 |
BTA-05006072 | 2 1/4" | 18.16" | 12" | 72" | 5/16" | 71 3/4" | 60" | €1,742.68 | RFQ
|
 |
BTA-05006660 | 2 1/4" | 16.19" | 10" | 60" | 5/16" | 59 3/4" | 66" | €1,659.98 | RFQ
|
