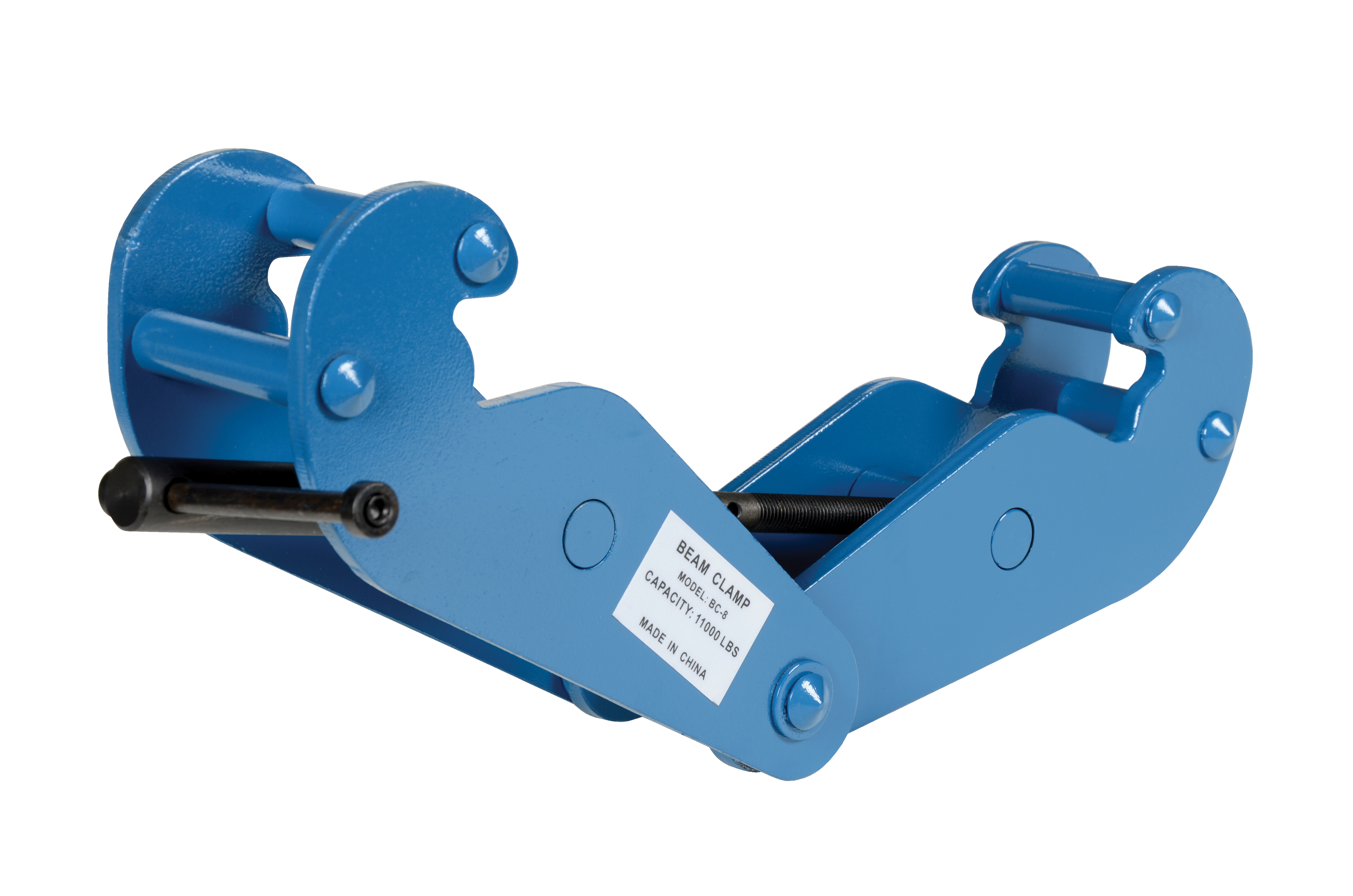

VESTIL BC-8 Beam Clamp, Horizontal Lift Style, 8000 Lb. Capacity
Get it by Monday, Jun 16
€152.67 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | Beam Clamp |
| Capacity | 8000 lbs. |
| Clamp Lock Mechanism | Lever |
| Color | Blue |
| Height | 7 3/4" |
| Jaw Depth | 5 1/4" |
| Length | 21 1/4" |
| Lifting Clamp Style | Horizontal |
| Lifting Clamp Type | Beam Clamp |
| Lifting Style | Horizontal |
| Material | Steel |
| Max. Compatible Flange Width | 12 1/4" |
| Max. Jaw Opening | 8 1/2" |
| Max. Load | 8000 lbs. |
| Min. Compatible Flange Width | 3 1/2" |
| Min. Jaw Opening | 4 1/2" |
| Overall Depth | 21 1/4" |
| Overall Height | 7 3/4" |
| Overall Length | 21 1/4" |
| Overall Thickness | 4/25" |
| Overall Width | 5 1/4" |
| Ring Dia. | 0.787" |
| Width | 5 1/4" |
| Working Load Limit | 4 ton. |
| Ship weight (kg) | 17.1 |
| Ship height (cm) | 17.78 |
| Ship length (cm) | 55.88 |
| Ship width (cm) | 20.32 |
| HS code | 7326908588 |
| Country of Origin | CN |
| Product | Model | Capacity | Color | Fits Beam Flange Width | Jaw Depth | Max. Compatible Flange Width | Max. Jaw Opening | Min. Compatible Flange Width | Min. Jaw Opening | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
BC-1 | 1000 lbs. | Orange | 3 1/8" to 9 5/8" | 3 1/2" | 9.63" | 8 1/2" | 3.13" | 2 1/2" | €57.23 | |
 |
BC-10 | 10000 lbs. | Blue | 3 1/2" to 12 1/4" | 5 1/4" | 12.25" | 8 1/2" | 3.5" | 4 1/2" | €176.06 | |
 |
BC-2 | 2000 lbs. | Orange | 3 1/8" to 9 5/8" | 3 1/2" | 9.5" | 8 1/2" | 3.25" | 2 1/2" | €67.80 | |
 |
BC-4 | 4000 lbs. | Orange | 3 1/8" to 9 5/8" | 4" | 9.5" | 9 1/4" | 3.25" | 2 1/2" | €76.33 | |
 |
BC-6 | 6000 lbs. | Orange | 3 1/2" to 12 1/4" | 5 1/2" | 12.25" | 13 1/4" | 3.5" | 0" | €125.13 |
