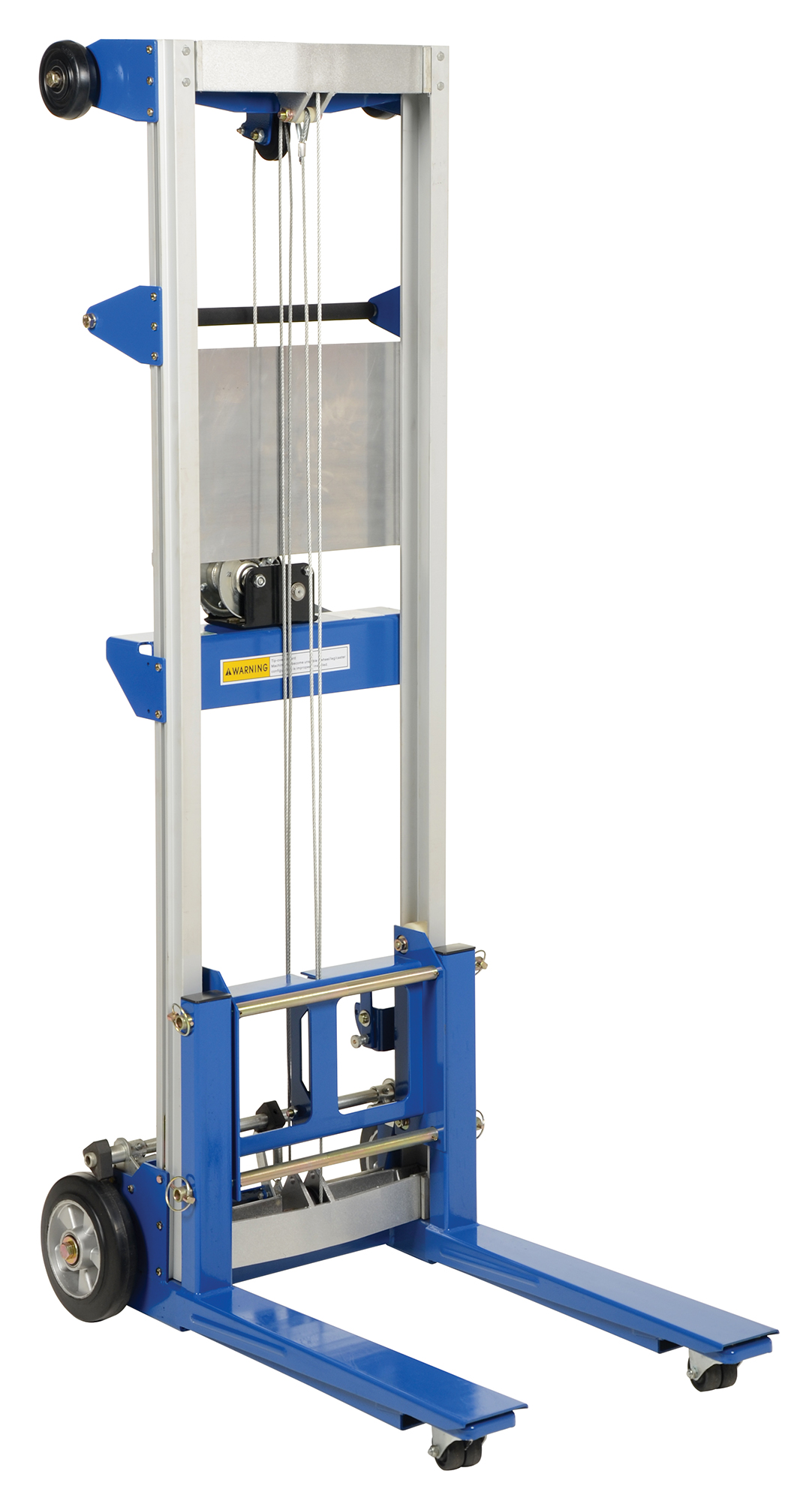

VESTIL A-LIFT-R W Inch Lift Truck, Fixed Straddle, 500 Lb. Capacity
Due to weight and dimension restrictions, please request a shipping quote
€1,530.45 /unit
Request a Quote
Payment
Due to weight and dimension restrictions, please request a shipping quote
Payment
| Item | Invertible Fork Material Lift |
| Capacity | 500 lbs. |
| Color | Silver |
| Depth | 35 1/8" |
| Design | Standard |
| Fork Raise Per Hand Crank Rotation | 1" |
| Fork Saddle Width | 20 1/2" |
| Fork Thickness | 1 3/4" |
| Fork Width | 4" |
| Frame Material | Steel |
| Front Wheel Dia. | 2" |
| Front Wheel Type | Swivel |
| Handle Length | 18.63" |
| Handle Material | Steel |
| Height | 1 3/4" , 68 3/4" |
| Inside Straddle Width | 12 1/2" |
| Length | 22.437" , 35 1/8" |
| Lifting Height Max. | 47" |
| Lowered Height | 3 1/2" |
| Max. Adjustable Fork Width | 20 1/2" |
| Max. Fork Height | 67" |
| Outside Dia. | 20 1/2" |
| Outside Straddle Width | 20 1/2" |
| Power Source | Hand |
| Rear Wheel Dia. | 8" |
| Width | 23.937" |
| Ship weight (kg) | 85.95 |
| Ship height (cm) | 45.72 |
| Ship length (cm) | 233.68 |
| Ship width (cm) | 73.66 |
| HS code | 8427900000 |
| Country of Origin | CN |
| Product | Model | Capacity | Depth | Design | Fork Lowered Height | Fork Outside Dia. | Fork Saddle Width | Height | Inside Straddle Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
A-LIFT-R-HP | 400 lbs. | 35" | Standard | 3.5" | 20 7/8" | 20.88" | 67.31" | 12 3/4" | €1,200.71 | RFQ
|
 |
A-LIFT-S | 500 lbs. | 42.5" | Straddle | 1.25" | 20 7/8" | 29" | 67.31" | 21 3/4" to 36 1/4" | €1,637.60 | RFQ
|
 |
A-LIFT-S-EHP | 350 lbs. | 42.5" | Straddle | 1.25" | 20 7/8" | 29" | 79.13" | 21 3/4" to 36 1/4" | €1,420.17 | RFQ
|
 |
A-LIFT-S-HP | 400 lbs. | 42.5" | Straddle | 1.25" | 20 7/8" | 29" | 67.31" | 21 3/4" to 36 1/4" | €1,498.70 | RFQ
|
