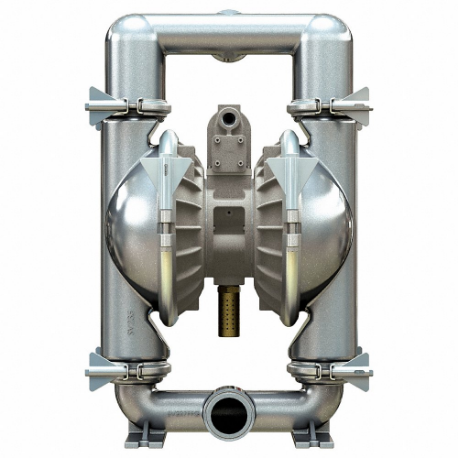

| Item | Double Diaphragm Pump |
| Air Consumption | 140 SCFM |
| Center Section Material | Aluminum |
| Check Seat Material | Hytrel |
| Connection Size | 2" |
| Connection Type | NPT |
| Diaphragm Material | Hytrel |
| Display Qty | 1 |
| Flow Rate @ 100 Psi | 180 GPM |
| Flow Rate @ 20 Psi | 90 GPM |
| Flow Rate @ 40 Psi | 130 GPM |
| Flow Rate @ 60 Psi | 155 GPM |
| Flow Rate @ 80 Psi | 162 GPM |
| Housing Material | Stainless Steel |
| Inlet Size | 1/2" |
| Inlet Type | NPT |
| Manifold Connection Type | Single Port |
| Max. Flow Rate | 185 GPM |
| Max. Head | 289 ft. |
| Max. Media Temp. | 220°F |
| Max. Outlet Pressure | 125 psi |
| Max. Solid Dia. | 1/4" |
| Media Discharge Location | Top |
| Media Intake Location | Bottom |
| Overall Height | 26.7" |
| Overall Length | 16 2/5" |
| Overall Width | 13 3/5" |
| Power Source | Air |
| Pump Assembly Type | Clamps |
| Self Priming | Yes |
| Valve Material | Hytrel |
| Valve Type | Ball |
| Air Inlet | 1/2" NPT |
| Discharge Port | 2" Tri-Clamp |
| Discharge Port Configuration | Top |
| Fluid Connection Size | 2" |
| Fluid Connection Type | Tri-Clamp |
| Manifold Connection | Single Port |
| Manufacturers Warranty Length | 5 yrs. |
| Max. Discharge Pressure | 125 psi |
| Max. Feet Of Head | 289 ft. |
| Max. Media Temperature | 220°F |
| Media Discharge Connection Size | 2" |
| Media Discharge Connection Type | Tri Clamp |
| Media Intake Connection Size | 2" |
| Media Intake Connection Type | Tri Clamp |
| Priming | Self Priming |
| Standards | FDA COMPLIANT, ATEX COMPLIANT |
| Suction Port | 2" Tri Clamp |
| Suction Port Configuration | Bottom |
| Ship weight (kg) | 47.7 |
| Ship height (cm) | 67.82 |
| Ship length (cm) | 41.66 |
| Ship width (cm) | 34.54 |
| Country of Origin | US |
