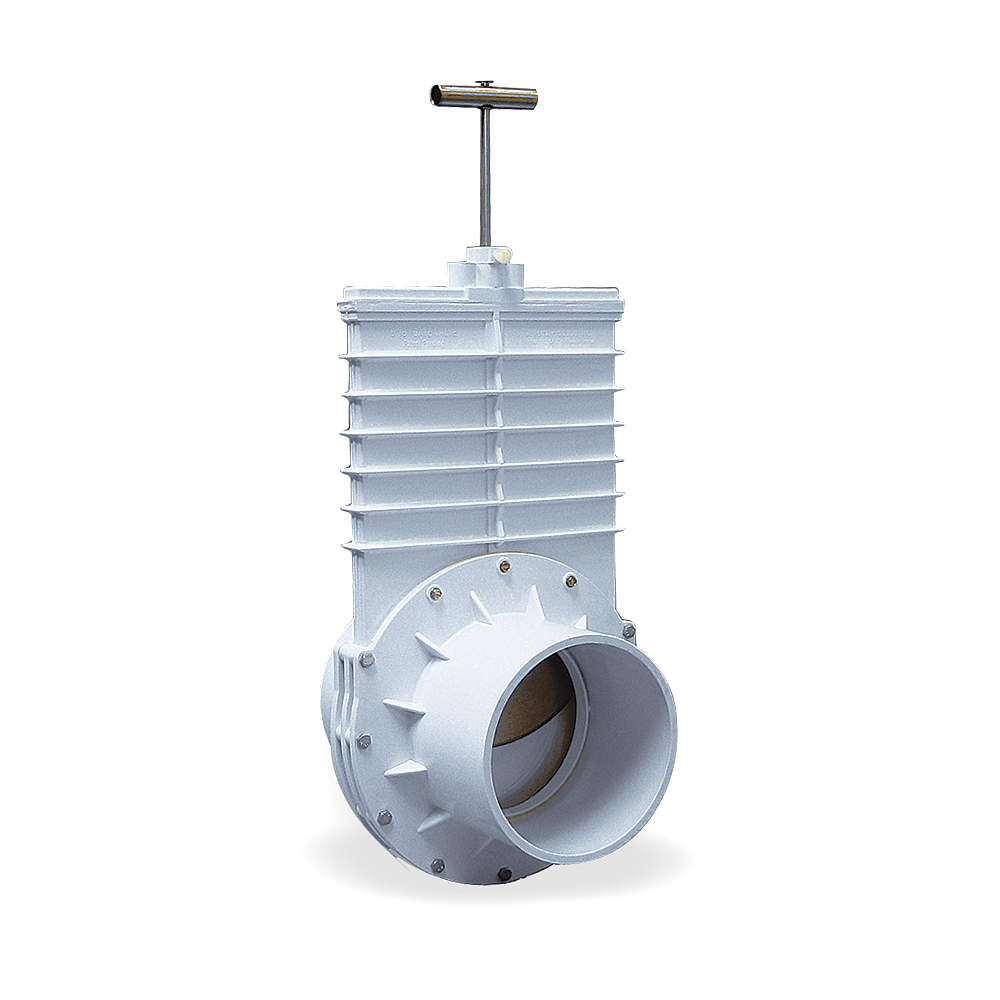

| Item | Gate Valve |
| Ansi Flange Class | Not Applicable |
| Body Material | PVC |
| Bonnet Style | Bonded |
| Class | Class 125 |
| Connection Gender - Side 1 | Female |
| Connection Gender Side 2 | Female |
| Connection Size - Side 1 | 10" |
| Connection Size - Side 2 | 10" |
| Connection Type | Slip |
| Connection Type - Side 2 | Slip |
| For Media | Water |
| Handle Height | 23 3/4" |
| Handle Length | Not Applicable |
| Handle Type | Hand Wheel |
| Inlet To Outlet Length | 13 1/8" |
| Max. Fluid Temp. | 167°F |
| Max. Water Pressure | 10 psi |
| Min. Operating Temp. | Not Applicable |
| Nominal Valve Size | 10" |
| Pipe Size | 10" |
| Stem Grade | Grade 304 |
| Stem Type | Rising |
| Top Of Handle To Inlet Center | 23 3/4" |
| Valve Class | Class 125 |
| Valve Stem Type | Rising |
| Wedge Style | Solid |
| Bonnet Material | PVC |
| Connection Gender - Side 2 | Female |
| Connection Type - Side 1 | Slip |
| Handle Material | Metal |
| Max. Pressure (cwp) | 10 psi |
| Max. Pressure (steam) | 10 psi |
| Media Temp. Range | 167°F |
| Number Of Flange Bolt Holes | 25 |
| Operating Temperature - Maximum | 167°F |
| Overall Length | 13.75" |
| Seal Material | TPE |
| Seat Material | Stainless Steel |
| Standards | MSS-SP-70 |
| Stem Material | 304 Stainless Steel |
| Wedge Material | 304 Stainless Steel |
| Ship weight (kg) | 23.58 |
| Ship height (cm) | 43.18 |
| Ship length (cm) | 93.98 |
| Ship width (cm) | 48.26 |
| HS code | 8481805090 |
| Country of Origin | MX |
