VAL-MATIC
VAL-MATIC 15A.2 Air Release Valve FNPT 3/4 x 1/2 Cast iron | AE4NMA 5LYL1

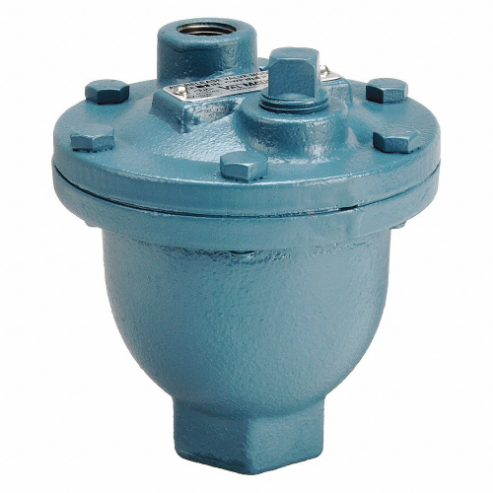

VAL-MATIC 15A.2 Air Release Valve FNPT 3/4 x 1/2 Cast iron

In Stock
Item: AE4NMA Model: 15A.2Cross Ref: 5LYL1
Check Availability
See variants (7)

Get it by May 24, Friday

Product available for flat shipping. Flat shipping price of €9,00 on transactions of value €99,00 or more and aggregate weight below 10 pounds.

Delivery Options:

Int. Economy (6-10 days)
  • Int. Express (5-7 days) ¥3,750
  • Ex-Works Pickup Free
  • Ex-works Pickup
€201.71 /unit
Add To Cart
Request a Quote

Payment Methods

Delivery Partners

Product Specifications:

ItemAir Release Valve
Body MaterialCast Iron
Connection TypeFNPT
Float Material316 Stainless Steel
Inlet Size3/4"
Max. Fluid Temp.250 Degrees F
Max. Pressure175 psi
Min. Pressure5 psi
Outlet Size1/2"
Vacuum Pressure29" Hg

Shipping Info:

Ship weight (kg) 2.4
Ship height (cm)14.48
Ship length (cm)12.7
Ship width (cm)12.19
HS code8481809050
Country of OriginUS

Product Details:

  • Air vacuum valve designed for releasing the accumulated air in fire pumps, hydropneumatic tools and pressure filters
  • Features cast-iron construction and a stainless-steel internal trim and floats for withstanding pressures up to 175 PSI
  • Resilient seal ensures a drip-tight positive shutoff operation
  • UL-listed and NSF 61, 372 and ISO certified
  • Max. Vent Capacity (6 scfm at 150 psi)

Product Variants

ProductModelInlet SizeMax. Fluid Temp.Max. PressurePrice
VAL-MATIC 15A Air Release Valve FNPT 1/2 x 1/2 Cast iron | AE4NLZ 5LYL0 15A1/2"250 Degrees F175 psi€208.39
VAL-MATIC 15A.3 Air Release Valve FNPT 1 x 1/2 Cast iron | AE4NMB 5LYL2 15A.31"250 Deg. F175 psi€220.53
VAL-MATIC 38 Air Release Valve FNPT 1 x 1/2 Cast iron | AE4NMC 5LYL3 381"250 Degrees F150 psi€625.09
VAL-MATIC 38.2 Air Release Valve FNPT 2 x 1/2 Cast iron | AE4NMD 5LYL4 38.22"250 Degrees F150 psi€658.63
VAL-MATIC 48A Air Vac Valve FNPT 2 x 1/2 Cast Iron | AE7BHM 5WLY3 48A2"250 Degrees F150 psi€1,220.57
VAL-MATIC 48A.2 Air Vac Valve FNPT 3 x 1/2 Cast Iron | AE7BHN 5WLY4 48A.23"250 Degrees F150 psi€1,328.74
VAL-MATIC 48A.3 Air Vac Valve FNPT 4 x 1/2 Cast Iron | AE7BHP 5WLY5 48A.34"250 Degrees F150 psi€1,605.31
