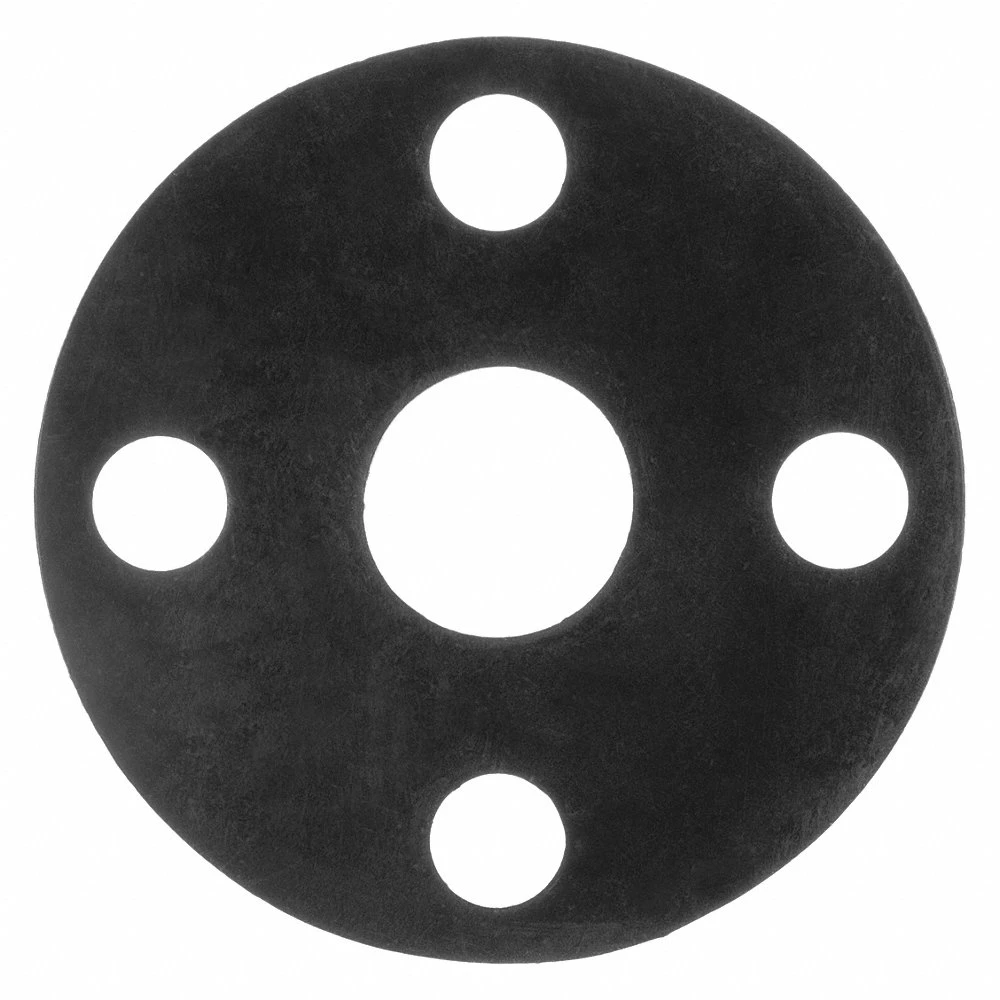

| Item | Flange Gasket |
| Bolt Holes | 4 |
| Color | Black |
| Flange Class | Class 150 |
| Inside Dia. | 2 3/8" |
| Material | EPDM |
| Metal Detectable | No |
| Outside Dia. | 6" |
| Pipe Size | 2" |
| Temp. Range | -30°C to +250°C |
| Thickness | 0.062" |
| Type | Full Face |
| Binder Material | None |
| Bolt Circle Diameter | 4 3/4" |
| Bolt Hole Diameter | 3/4" |
| Fda Approved | No |
| For Flange Ansi Class | Class 150 |
| For Fluid Type | Chemicals |
| For Location | Outdoor |
| For Pipe Size | 2" |
| Gasket Material | EPDM |
| Gasket Type | Full Face Gasket |
| Hardness | Shore 60A |
| Includes Mounting Hardware | No |
| Inner Ring | None |
| Inside Diameter | 2 3/8" |
| Maximum Operating Pressure | 150 psi |
| Maximum Operating Temperature | 250°F |
| Minimum Operating Temperature | -30°F |
| Number Of Bolt Holes | 4 |
| Outside Diameter | 6" |
| Resistance Properties | Chemical Resistant, Steam Resistant, UV Resistant, Water Resistant |
| Standards | ASME B16.21, ASTM D2000 BA 607 |
| X-ray Detectable | No |
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
