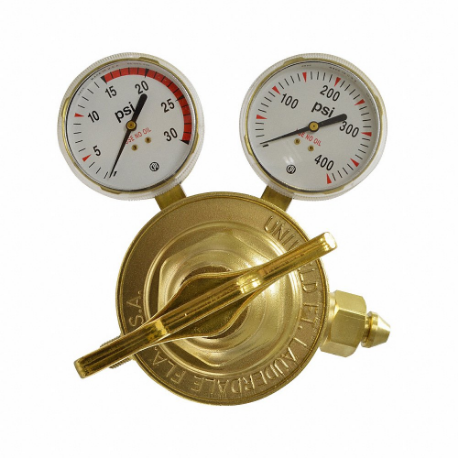

| Item | Gas Regulator |
| Application | Low Pressure |
| Body Material | Brass |
| Bonnet Material | Brass |
| Cga Number | CGA 300 |
| Compatible Gas Type | Acetylene |
| Diaphragm Material | Stainless Steel |
| Duty Rating | Heavy Duty |
| Features | 3-1/4 In Diaphragm, Delrin Bushing For Smooth Flow Adjustment, Easy To Read, Fine Mesh Filter Screen Between Inlet And Seat, Heavy Duty Mechanical Stem Type Seat And Nozzle Assembly, Mechanical Stem Type Seat, Pressure Relief Device For Low Pressure Gauge Protection Only |
| For Gas Type | Acetylene |
| Gauge Diameter | 2 1/2" |
| Height | 6 1/2" |
| Hose Fitting Size | B |
| Inlet Connection Gender | Male |
| Inlet Connection Type | CGA |
| Inlet Thread Direction | Right Hand |
| Max. Inlet Pressure | 3000 psig |
| Max. Outlet Pressure | 15 psig |
| Min. Outlet Pressure | 2 psig |
| Number Of Stages | 1 |
| Outlet Connection Gender | Male |
| Outlet Connection Size | 9/16"-18 |
| Outlet Thread Direction | Left Hand |
| Outlet Thread Gender | Male |
| Overall Depth | 6 1/2" |
| Width | 7" |
| Inlet Connection | CGA 300 |
| Inlet Pressure (maximum) | 3000 psig |
| Outlet Connection | 9/16"-18 M LH |
| Outlet Pressure (maximum) | 15 psig |
| Outlet Pressure (minimum) | 2 psig |
| Overall Height | 6 1/2" |
| Overall Width | 7" |
| Regulator Series | RVT80 |
| Standards | UL 592H |
| Ship weight (kg) | 2.77 |
| Ship height (cm) | 16.51 |
| Ship length (cm) | 16.51 |
| Ship width (cm) | 17.78 |
| Country of Origin | US |
