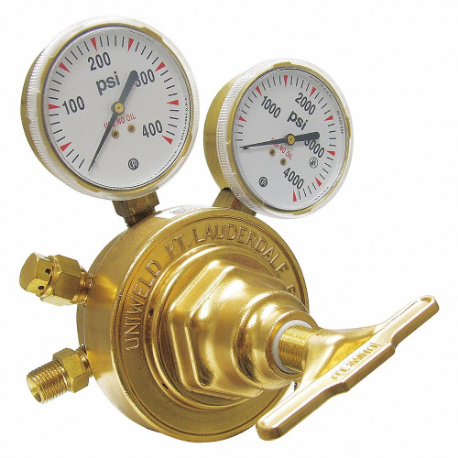

| Item | Regulator |
| Application | General Purpose |
| Body Finish | Polished |
| Body Material | Brass |
| Bonnet Material | Brass |
| Cga Number | CGA 540 |
| Compatible Gas Type | Oxygen |
| Control Type | T Handle |
| Delivery Pressure Range | 5 psi to 125 psi |
| Diaphragm Material | Stainless Steel |
| Duty Rating | Heavy Duty |
| Features | Delrin Bushing For Smooth Flow Adjustment, Fine Mesh Filter Screen Between Inlet And Seat |
| For Gas Type | Oxygen |
| Gauge Diameter | 2 1/2" |
| Hose Fitting Size | B |
| Inlet Connection Gender | Male |
| Inlet Thread Direction | Right Hand |
| Max. Inlet Pressure | 3000 psig |
| Max. Outlet Pressure | 125 psig |
| Maximum Gauge Outlet Pressure | 4000 psig |
| Min. Outlet Pressure | 5 psig |
| Mounting Type | Cylinder |
| Number Of Stages | 1 |
| Outlet Connection Gender | Male |
| Outlet Connection Size | 9/16"-18 |
| Outlet Connection Type | UNF |
| Outlet Thread Direction | Right Hand |
| Regulator Application | General Purpose |
| Regulator Supply Type | Cylinder |
| Supply Pressure Gauge | 0 psi to 4000 psi |
| Inlet Connection | CGA 540 |
| Inlet Connection Size | 0.908"-14 |
| Inlet Connection Type | NGO |
| Inlet Pressure (maximum) | 3000 psig |
| Outlet Connection | 9/16"-18 M RH |
| Outlet Pressure (maximum) | 125 psig |
| Outlet Pressure (minimum) | 5 psig |
| Regulator Series | RV80 |
| Standards | UL LISTED |
| Ship weight (kg) | 2.75 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 23.97 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
