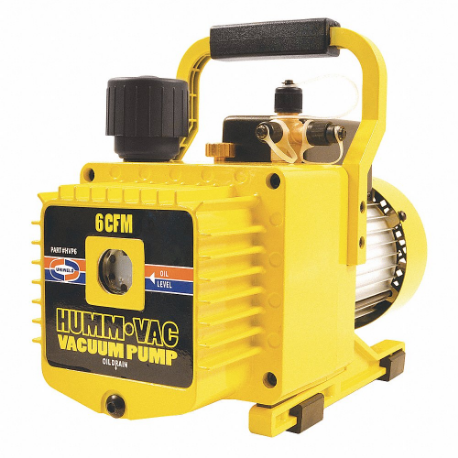

UNIWELD HVP6 Refrigerant Evacuation Pump, 6 Cfm Displacement, 1/2 Hp Hp, 15 Micron
Get it by Monday, Jun 16
€785.47 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | Evacuation Pump |
| Amps Ac | 2A |
| Cord | 6 ft. |
| Displacement | 6 CFM |
| End Vacuum | 15 µm |
| Frequency | 50/60 Hz |
| Housing Material | Aluminum, Steel |
| Hp | 1/2 hp |
| Includes | 1/2" ACME, 1/4" Male Flare, 3/8" Male Flare |
| Inlet Port Size | 1/2", 1/4", 3/8" |
| Oil Capacity | 32 oz. |
| Overall Height | 10 3/4" |
| Overall Length | 14 1/2" |
| Overall Width | 6 7/8" |
| Voltage | 110/220V AC |
| A2l Compatibility | Not A2L Compatible |
| Application | Commercial, Residential |
| Body Material | Metal |
| Calibration Certificate Type | Not Certified |
| Cord Length | 6 ft. |
| Current | 2A |
| Drain Port Connection Thread Direction | Right-Hand |
| Drive Type | Direct Drive |
| For Refrigerant Group | CFC, HCFC, HFC |
| For Refrigerant Type | R-11, R-113, R-114, R-115, R-116, R-12, R-123, R-1234YF, R-1234ZE, R-124, R-125, R-1270, R-13, R-134A, R-141B, R-142B, R-143A, R-152A, R-21, R-218, R-22, R-227EA, R-23, R-236FA, R-245FA, R-290, R-32, R-401A, R-401B, R-401C, R-402A, R-402B, R-403A, R-403B, R-404A, R-405A, R-406A, R-407A, R-407B, R-407C, R-407D, R-407E, R-407F, R-408A, R-409A, R-409B, R-41, R-410A, R-410B, R-411A, R-411B, R-412A, R-413A, R-414A, R-414B, R-415A, R-415B, R-416A, R-417A, R-418A, R-419A, R-420A, R-421A, R-421B, R-422A, R-422B, R-422C, R-422D, R-423A, R-424A, R-425A, R-426A, R-427A, R-428A, R-429A, R-430A, R-431A, R-432A, R-433A, R-434A, R-435A, R-436A, R-436B, R-437A, R-438A, R-441A, R-442A, R-443A, R-444A, R-500, R-501, R-502, R-503, R-504, R-507A, R-508A, R-508B, R-509A, R-510A, R-512A, R-600, R-600A, R-601, R-601A, R-717, R-744, R-E170 |
| Horsepower | 1/2 hp |
| Includes Gas Ballast | Gas Ballast Included |
| Includes Hoist Clip | Hoist Clip Not Included |
| Includes Isolation Valve | Isolation Valve Included |
| Includes Oil Mist Filter | Oil Mist Filter Included |
| Includes Sightglass | Sightglass Included |
| Includes Vacuum Gauge | Gauge Not Included |
| Inlet 1 Port Connection Gender | Male |
| Inlet 1 Port Connection Size | 1/4" |
| Inlet 1 Port Connection Thread Direction | Right-Hand |
| Inlet 1 Port Connection Type | Flare |
| Inlet 2 Port Connection Gender | Male |
| Inlet 2 Port Connection Size | 3/8" |
| Inlet 2 Port Connection Thread Direction | Right Hand |
| Inlet 2 Port Connection Type | Flare |
| Inlet 3 Port Connection Gender | Male |
| Inlet 3 Port Connection Size | 1/2" |
| Inlet 3 Port Connection Thread Direction | Right-Hand |
| Inlet 3 Port Connection Type | Flare |
| Motor Type | Dual Voltage |
| Number Of Inlet Ports | 3 |
| Number Of Stages | 2 |
| Plug Configuration | 5-15P |
| Power Source | Plug In |
| Product Type | Vacuum Pump |
| Reservoir Port Connection Thread Direction | Right-Hand |
| Series | HUMM-VAC Series |
| Ultimate Vacuum | 15 µm |
| Weight | 26.7 lbs. |
| Ship weight (kg) | 13.39 |
| Ship height (cm) | 27.31 |
| Ship length (cm) | 36.83 |
| Ship width (cm) | 17.46 |
| Country of Origin | CN |
