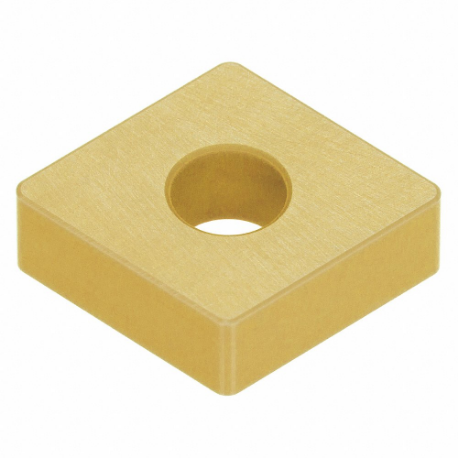

| Item | Turning Insert |
| Ansi Code | CNGA 433 LX11 |
| Chip-breaker Code | Yes |
| Clearance Angle | 0° |
| Corner Radius | 0.047" |
| Cutting Application | Finishing To Medium Cutting |
| Cutting Direction | Neutral |
| Cutting Edge Length | 0.508" |
| Finish | Tin |
| Included Angle | 80° |
| Inscribed Circle | 1/2" |
| Insert Code | CNGA433 |
| Insert Holding Type | Straight Hole |
| Insert Style | CNGA |
| Material | Ceramic |
| Number Of Cutting Edges | 4 |
| Primary Material Application | Hardened Steel |
| Rake | Negative |
| Shape | Rhombic |
| System Of Measurement | Imperial |
| Thickness | 0.188" |
| Chip-breaker | Yes |
| Depth Of Cut | 0.0787" |
| Finish - Machining | TiN |
| Manufacturer Grade | LX11 |
| Material - Machining | Ceramic |
| Measurement System | Fractional Inch |
| Primary Material Application Iso Code | H |
| Standards | ISO 26623-1 |
| Ship weight (kg) | 0.04 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
