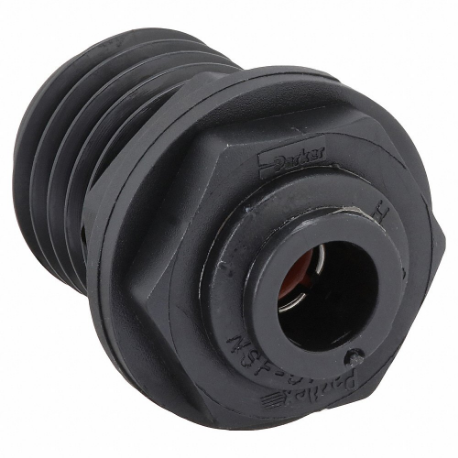

| Item | Bulkhead Union |
| Application | Air, Beer, Dyes, Non-Potable Water, Soft Drinks, Wine |
| Color | Black |
| Compatible Tube Material | Fluoropolymer, Nylon, Polyethylene, Polypropylene, Polyurethane, PVDF, Vinyl |
| Fitting Side A Connection Type | Push To Connect |
| Fitting Side A Tube Outer Diameter | 3/8" |
| Fitting Side B Connection Type | Push To Connect |
| Fitting Side B Tube Outer Diameter | 3/8" |
| Length | 1 3/4" |
| Material | PVDF |
| Max. Operating Pressure | 300 psi |
| Max. Operating Temp. | 275°F |
| Min. Operating Temp. | 0°F |
| Release Ring Material | FKM |
| Release Type | Button |
| Specific Fitting Shape | Straight Bulkhead Union |
| Sub-brand | Kynar |
| System Of Measurement | Imperial |
| Vacuum Rating | 28 in. hg |
| Fitting Material | PVDF |
| Includes Pre-applied Thread Sealant | No |
| Maximum Operating Pressure | 300 psi |
| Maximum Operating Temperature | 275°F |
| Minimum Operating Temperature | 0°F |
| Overall Length | 1 3/4" |
| Resistance Properties | Chemical Resistant, Mechanical Resistant |
| Standards | FDA APPROVED, NSF/ANSI 51 |
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Product | Model | Price | |
|---|---|---|---|
|
FB4BU4-HBLK | €26.16 |
