Get it by Tuesday, Jun 17
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
Payment

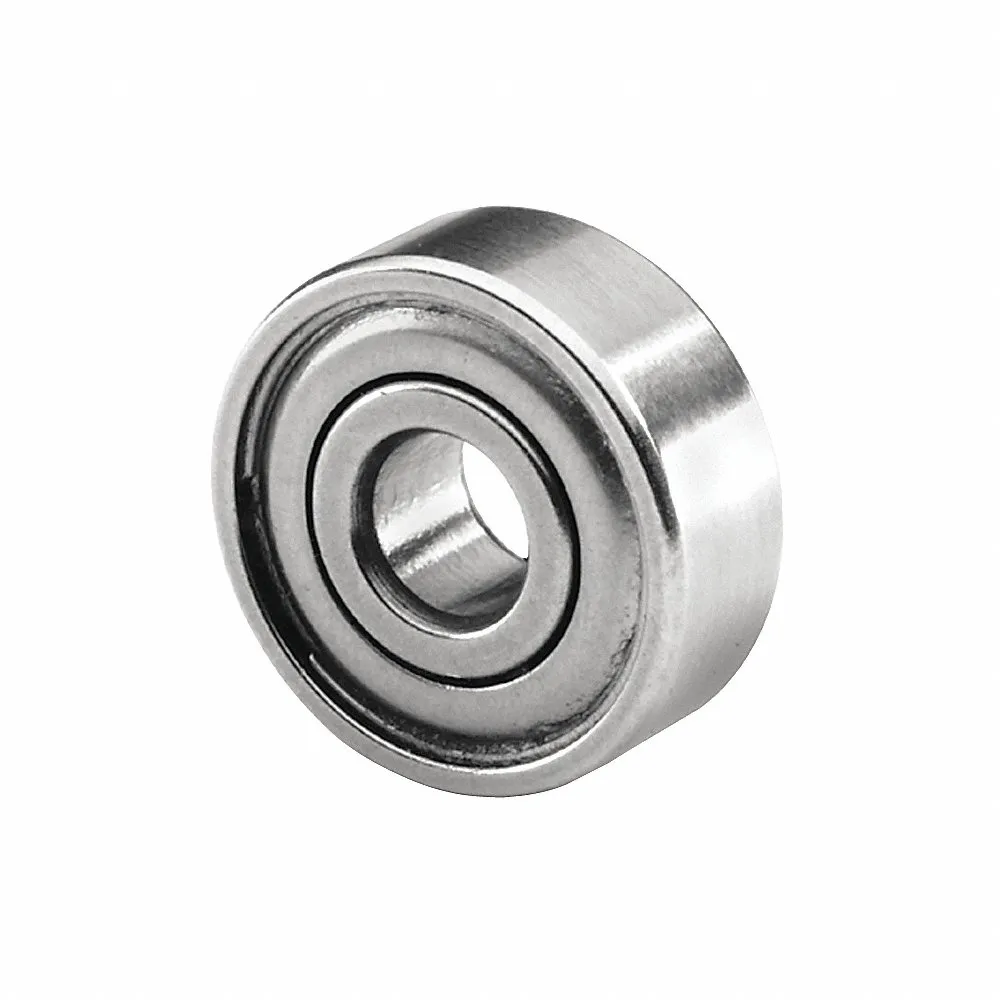

| Item | Miniature Ball Bearing |
| Abec Rating | 1 |
| Abec Tolerance | 1 |
| Ball Material | Alloy Steel |
| Ball Material Grade | Grade AISI 52100 |
| Bore Dia. | 4 mm |
| Cage Type | Shielded |
| Closure | Double Shielded |
| Dynamic Load Capacity | 290 lbf. |
| Includes Retaining Ring | No |
| Max. Speed | 48000 RPM |
| Max. Temp. | 302°F |
| Min. Temp. | -40°F |
| Miniature Bearing | Yes |
| Outer Ring Width | 5 mm |
| Outside Dia. | 13 mm |
| Outside Dia. Tolerance | -0.008 mm to 0 mm |
| Retaining Ring Dia. | Not Applicable |
| Retaining Ring Groove | No |
| Retaining Ring Thickness | Not Applicable |
| Ring Material | Alloy Steel |
| Ring Material Grade | Grade AISI 52100 |
| Shield Material | Stainless Steel |
| Static Load Capacity | 110 lbf. |
| System Of Measurement | Metric |
| Bearing Industry Number | 624 |
| Bore Diameter | 4 mm |
| Bore Diameter Tolerance | 0/-0.008 mm |
| Closure & Seal Type | Double Shielded |
| Dynamic Radial Load Capacity | 290 lbf. |
| For Environment | Oily, Greasy |
| Lubricant Material | Polyrex EM |
| Maximum Speed | 48000 RPM |
| Maximum Temperature | 302°F |
| Minimum Temperature | -40°F |
| Outside Diameter | 13 mm |
| Outside Diameter Tolerance | +0/-0.008 mm |
| Standards | AFBMA, ISO CERTIFIED 9001 |
| Static Radial Load Capacity | 110 lbf. |
| Ship height (cm) | 1.3 |
| Ship length (cm) | 1.3 |
| Ship width (cm) | 0.5 |
| Country of Origin | CN |
| Model | Item | Price | |
|---|---|---|---|
| SSRI1038 ZZ SRL | Miniature Ball Bearing | €14.13 | |
| SSRI1212 ZZ SRL | Miniature Ball Bearing | €14.13 | |
| SSRI614 ZZ SRL | Miniature Ball Bearing | €7.61 | |
| SSRI8516 ZZ SRL | Miniature Ball Bearing | €8.32 | |
| RI814 ZZ PRX | Miniature Ball Bearing | €7.89 | |
| SSRI814 ZZ SRL | Miniature Ball Bearing | €7.94 | |
| 605 ZZ PRX | Miniature Ball Bearing | €7.01 |
