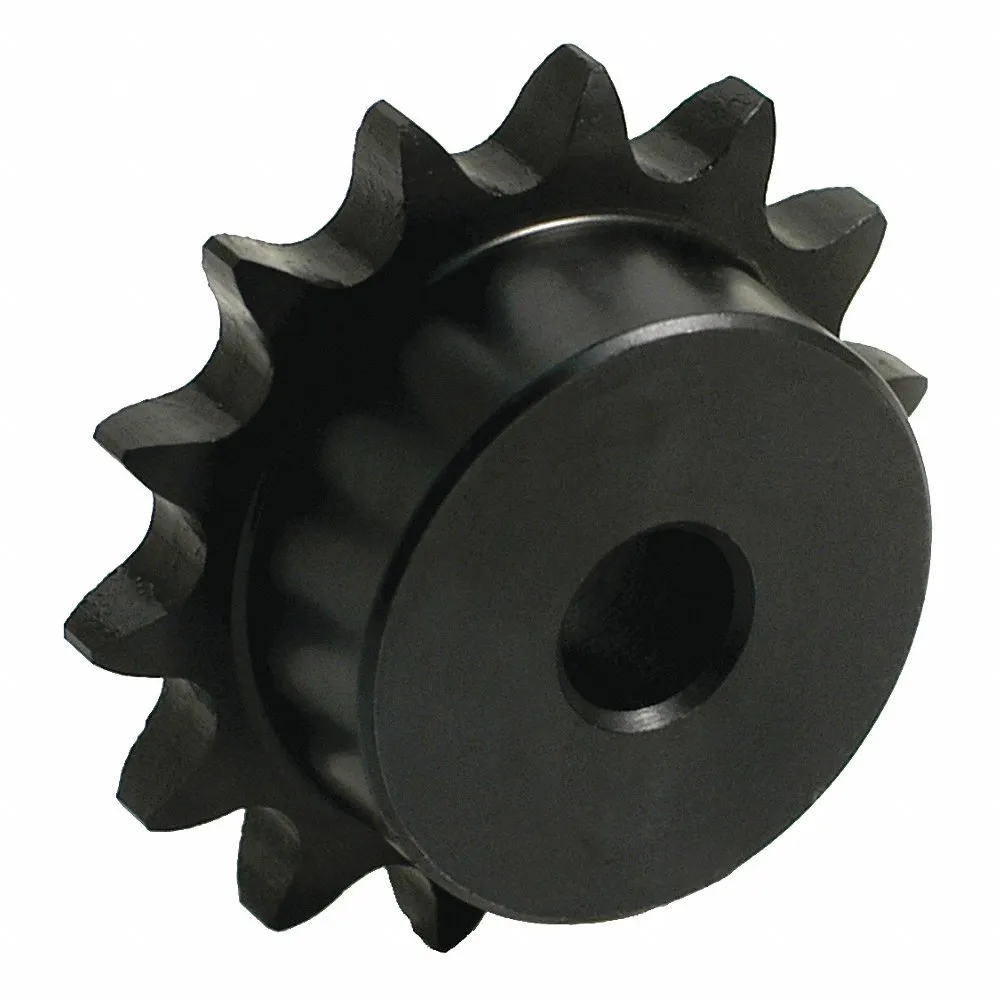

TRITAN 100B18H X 1 1/4 MPB Roller Chain Sprocket, One-Sided Hub, 18 Teeth, 7.199 Inch Pitch Dia
€196.91 /unit
Request a Quote
Payment
Payment
| Item | Roller Chain Sprocket |
| Bore Dia. | 1 1/4" |
| Bore Type | Plain |
| Chain Number | 100 |
| Finish | Black Oxide |
| For Chain Number | 100.0 |
| For Chain Pitch | 1 1/4" |
| For Number Of Strands | 1 |
| Hub Dia. | 4 1/2" |
| Hub Projection | 1.058" |
| Hub Type | One Side |
| Industry Chain Size | 100 |
| Item - Roller Chain Sprockets | Roller Chain Sprocket |
| Keyway Depth | Not Applicable |
| Keyway Width | Not Applicable |
| Length Through Bore | 1 3/4" |
| Material | Steel |
| Max. Bore - Sprockets | 3" |
| Maximum Bore Dia. | 3" |
| Number Of Set Screws | 0 |
| Number Of Teeth | 18 |
| Outside Dia. | 7 21/25" |
| Pitch Dia. | 7.199" |
| Set Screw Location | Not Applicable |
| Set Screw Size | Not Applicable |
| Teeth Heat Treatment | Hardened Teeth |
| Tooth Width | 0.692" |
| Width Across Tooth Sets | Not Applicable |
| Bore Diameter | 1 1/4" |
| Hub Diameter | 4 1/2" |
| Maximum Bore Diameter | 3" |
| Outside Diameter | 7.84" |
| Pitch Diameter | 7.199" |
| Standards | ANSI B29.1, BIS |
| Ship weight (kg) | 5.13 |
| Ship length (cm) | 19.91 |
| Ship width (cm) | 19.91 |
| Country of Origin | CN |
| Model | Price | |
|---|---|---|
| 50A10H X 5/8 | €20.13 | |
| 80A10H X 3/4 | €27.37 | RFQ
|
| 100A10H X 1 | €54.71 | |
| 100A11H X 1 | €59.33 | |
| 40A12H X 1/2 | €16.13 | |
| 50A12H X 5/8 | €19.31 | |
| 60A12H X 3/4 | €22.98 |
