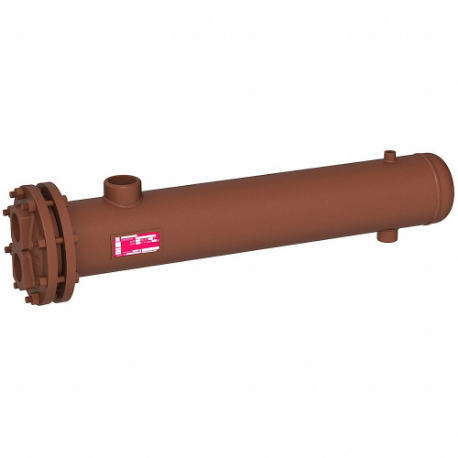

| Item | Heat Exchanger |
| Capacity | 211 GPM |
| Connection Type | NPT |
| Depth | 13 1/2" |
| Heat Dissipation Capacity For Oil | Not Applicable |
| Heat Dissipation Capacity For Water | 800000 btuH |
| Height | 13 1/2" |
| Length | 54 4/5" |
| Max. Btuh (water To Water Application) | 800000 btuH |
| Number Of Passes | 2 |
| Overall Height | 13 1/2" |
| Overall Width | 13 1/2" |
| Shell Flow Capacity | 211 GPM |
| Shell Material | Carbon Steel |
| Shell Maximum Pressure Rating | 150 psig |
| Shell Outside Diameter | 8" |
| Shell Pipe Connection Size | 3" |
| Temp. | 375°F |
| Tube Flow Capacity | 82 GPM |
| Tube Length | 54 3/4" |
| Tube Material | Copper |
| Tube Maximum Pressure Rating | 150 psig |
| Tube Pipe Connection Size | 3" |
| Type | Shell And Tube |
| Width | 13 1/2" |
| Fluid Compatibility | Steam, Water |
| Heat Exchanger Type | U Tube |
| Shell Maximum Operating Temperature | 375°F |
| Shell Pipe Connection Type | NPT |
| Total Surface Area | 32.1 sq. ft. |
| Tube Maximum Operating Temperature | 400°F |
| Water Heat Dissipation Capacity | 800000 btuH |
| Ship weight (kg) | 105.75 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Product | Model | Item | Price | |
|---|---|---|---|---|
 |
RTB-TS08-048-222BS-SX-CCC-11+G | Heat Exchanger | €5,626.17 | |
 |
RTB-TS08-060-222BS-SX-CCC-11+G | Heat Exchanger | €6,071.46 | |
 |
RTB-TS10-048-222BS-SX-CCC-11+G | Heat Exchanger | €7,866.76 | |
 |
TS10-048-222BS-SSCI-SX-CCC-01-66G2 | Heat Exchanger | €10,336.57 | |
 |
TS12-048-222BS-SSCI-SX-CCC-01-66K3 | Heat Exchanger | €14,185.03 | |
 |
TS06-060-222BS-SSCI-SX-CCC-11-3352 | Heat Exchanger | €6,566.51 | |
 |
TS06-048-222BS-SSCI-SX-CCC-11-3352 | Heat Exchanger | €5,193.99 |
