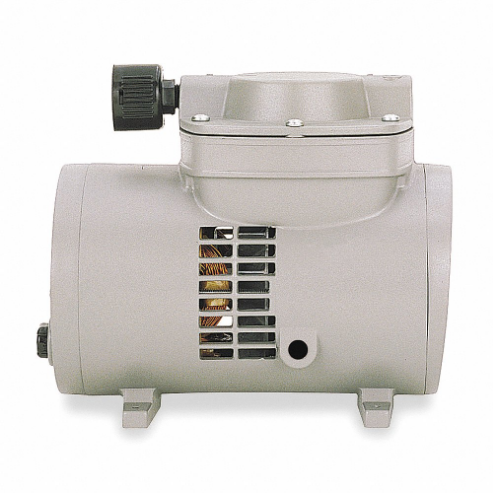

| Item | Compressor/Vacuum Pump |
| Compressor Type | Diaphragm |
| Free Air Cfm @ 0 Psi | 1.24 CFM |
| Full Load Amps | 3A |
| Hp | 1/8 hp |
| Inlet Size | 1/4" |
| Max. Psi Cont. | 30 psi |
| Max. Psi Int. | 40 psi |
| Max. Vacuum | 23.8 in. hg |
| Outlet Size | 1/4" |
| Overall Height | 6 7/8" |
| Overall Length | 7 7/8" |
| Overall Width | 4 3/4" |
| Power Cord | Yes |
| Cord Length | 6 ft. |
| Current Rating | 3A |
| Frequency | 60 Hz |
| Inlet Connection Type | NPT |
| Maximum Continuous Pressure | 30 psi |
| Maximum Flow Rate | 0.44 CFM @ 30 psi, 1.24 CFM @ 0 psi |
| Maximum Intermittent Pressure | 40 psi |
| Maximum Vacuum | 23.8 in. hg |
| Outlet Connection Type | NPT |
| Output Power | 1/8 hp |
| Power Cord Included | Yes |
| Voltage | 115V AC |
| Ship weight (kg) | 5.11 |
| Ship height (cm) | 17.46 |
| Ship length (cm) | 20 |
| Ship width (cm) | 12.07 |
| HS code | 8414801690 |
| Country of Origin | US |
| Product | Model | Full Load Amps | Hp | Inlet Size | Outlet Size | Overall Height | Overall Length | Overall Width | Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
107CDC20 | 9.5 | 1/10 | 1/8" NPT | 1/8" NPT | 4.75" | 7.375" | 4.25" | 12 VDC | €362.23 | |
|
107CAB18 | 1.7 | 1/20 | 1/8" NPT | 1/8" NPT | 4.75" | 7" | 4.25" | 115 | €337.87 | |
 |
2107CA20 | 1.6 | 1/20 | 1/8" NPT | 1/8" | 4.75" | 8" | 4.25" | 115 | €394.57 | |
|
907CDC18 | 10.8 | 1/10 | 1/4" NPT | 1/4" NPT | 5 57/64" | 7.875" | 4.25" | 12 VDC | €414.85 |
