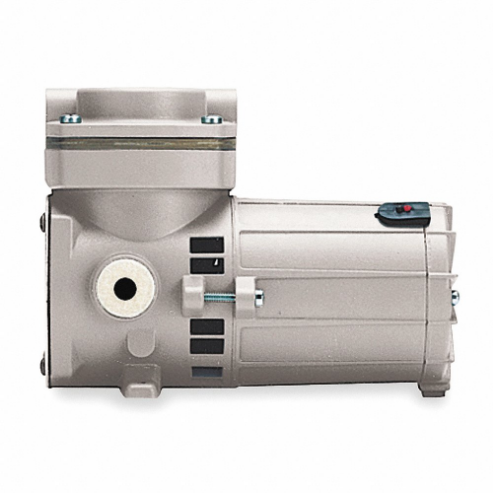

| Item | Piston Air Compressor |
| Color | Gray |
| Cylinder Material | Aluminum |
| Finish | Gray |
| Free Air Cfm @ 0 Psi | 0.79 CFM |
| Free Air Cfm @ 100 Psi | 0.24 CFM |
| Free Air Cfm @ 20 Psi | 0.61 CFM |
| Free Air Cfm @ 50 Psi | 0.41 CFM |
| Full Load Amps | 10.5A |
| Hp | 1/10 hp |
| Motor Type | Permanent Magnet |
| Number Of Cylinders | 1 |
| Overall Height | 5.333" |
| Overall Length | 7 1/2" |
| Overall Width | 4 1/4" |
| Power Cord | No |
| Rpm | 3450 RPM |
| Sound Level | 63 dBA @ 60 Psi |
| Temp. Range | +104°F to +50°F |
| Thermal Protection | Yes |
| Valve | Corrosion Resistant Sandwich |
| Current Rating | 10.5A |
| Duty Cycle | Continuous |
| Free Air Flow Rate | 0.27 CFM |
| Inlet Size | 1/8" |
| Inlet Type | NPT |
| Lubrication Type | Oil Free |
| Maximum Continuous Pressure | 100 psi |
| Maximum Intermittent Pressure | 100 psi |
| Maximum Operating Temperature | 104°F |
| Maximum Speed | 3310 RPM |
| Minimum Operating Temperature | 50°F |
| Outlet Size | 1/4" |
| Outlet Type | NPT |
| Output Power | 1/10 hp |
| Phase | Single |
| Piston Type | WOB L |
| Pump Type | WOB-L Piston |
| Stroke Length | 3/8" |
| Tank Style | Tankless |
| Valve Material | Stainless Steel |
| Valve Type | Corrosion Resistant Sandwich |
| Voltage | 12V DC |
| Ship weight (kg) | 2.41 |
| Ship height (cm) | 13.55 |
| Ship length (cm) | 19.05 |
| Ship width (cm) | 10.8 |
| HS code | 8414100000 |
| Country of Origin | US |
| Product | Model | Full Load Amps | Hp | Inlet Size | Item | Motor Type | Outlet Size | Overall Height | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
617CA32 | 4.6 | 1/8 | 1/4" NPT | Piston Air Compressor | Shaded Pole | 1/4" NPT | 9" | 13" | €536.31 | |
 |
2688CE44 | 4.7 | 1/3 | 1/4" NPT | Piston Air Compressor/Vacuum Pump | Shaded Pole, Thermally Protected with High Torque Start Winding | 1/4" NPT | 7 1/10" | 9.625" | €775.01 | |
|
617CA22 | 3.1 | 1/8 | 1/4" NPT | Piston Air Compressor/Vacuum Pump | Shaded Pole, Thermally Protected with High Torque Start Winding | 1/4" NPT | 6 4/5" | 8" | €578.16 | |
 |
688CE44 | 3.6 | 1/3 | 1/4" NPT | Piston Air Compressor/Vacuum Pump | Shaded Pole, Thermally Protected with High Torque Start Winding | 1/4" NPT | 6 4/5" | 8" | €608.41 | |
 |
2688VE44 | 3.2 | 1/3 | 1/4" NPT | Piston Air Compressor/Vacuum Pump | Shaded Pole, Thermally Protected with High Torque Start Winding | 1/4" NPT | 7 1/10" | 9.625" | €739.66 |
