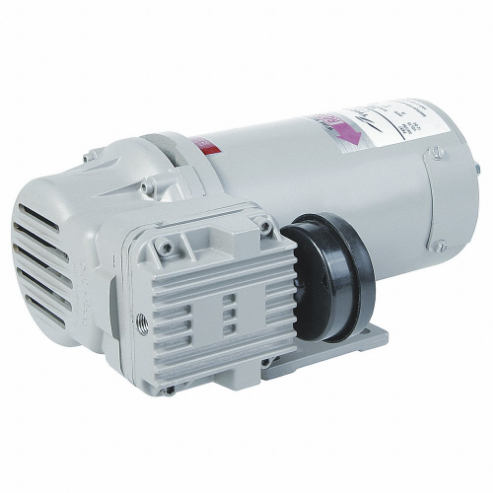

THOMAS PUMPS 270047 Piston Air Compressor, 1/3Hp, 24VDC, 0.25 Inch NPT Inlet
Get it by Tuesday, Jun 17
€1,238.13 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Piston Air Compressor |
| Cylinder Material | Cast Iron |
| Finish | Paint |
| Free Air Cfm @ 0 Psi | 2.2 CFM |
| Free Air Cfm @ 100 Psi | 0.95 CFM |
| Free Air Cfm @ 20 Psi | 1.75 CFM |
| Free Air Cfm @ 50 Psi | 1.34 CFM |
| Full Load Amps | 18.5A |
| Hp | 1/3 hp |
| Motor Type | Permanent Magnet DC |
| Number Of Cylinders | 1 |
| Overall Height | 5.812" |
| Overall Length | 12.562" |
| Overall Width | 5.812" |
| Power Cord | No |
| Sound Level | 70 dBA @ 100 Psi |
| Temp. Range | +32°F to +104°F |
| Thermal Protection | No |
| Valve | Stainless Steel |
| Current Rating | 18.5A |
| Enclosure Type | Totally Enclosed |
| Free Air Flow Rate | 1 CFM |
| Inlet Size | 1/4" |
| Inlet Type | NPT |
| Lubrication Type | Oil Free |
| Maximum Continuous Pressure | 100 psi |
| Maximum Intermittent Pressure | 100 psi |
| Maximum Operating Temperature | 104°F |
| Maximum Speed | 1800 RPM |
| Minimum Operating Temperature | 32°F |
| Mounting Style | Thru Bolt |
| Outlet Size | 1/4" |
| Outlet Type | NPT |
| Output Power | 1/3 hp |
| Phase | Single |
| Piston Type | Articulating |
| Pump Type | Articulating Piston |
| Tank Style | Tankless |
| Valve Material | Stainless Steel |
| Voltage | 24V DC |
| Ship weight (kg) | 11.32 |
| Ship height (cm) | 21.91 |
| Ship length (cm) | 28.45 |
| Ship width (cm) | 14.76 |
| HS code | 8414801690 |
| Country of Origin | US |
| Product | Model | Finish | Full Load Amps | Hp | Motor Type | Overall Height | Overall Length | Overall Width | Rpm | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
270025 | Gray | 28A | 1/3 hp | Permanent Magnet | 8.63" | 12 5/8" | 5 5/8" | 1800 RPM | €2,182.39 | |
 |
270072 | Gray Painted | 4/8A | 1/3 hp | Capacitor Start | 7" | 14 1/2" | 11.203" | 1725 RPM | €1,928.29 | |
|
270073 | Gray Painted | 7.3/3.6A | 1/2 hp | Capacitor Start | 7" | 15 1/2" | 11.609" | 1425 RPM | €2,375.38 | |
|
270080 | Gray Painted | 10.6/5.3A | 3/4 hp | Capacitor Start | 7" | 14" | 11.203" | 1725 RPM | €2,717.53 | |
|
270024 | Gray Painted | 26A | 1/4 hp | Permanent Magnet Dc | 5.812" | 11.562" | 5.812" | 1800 RPM | €1,265.73 |
