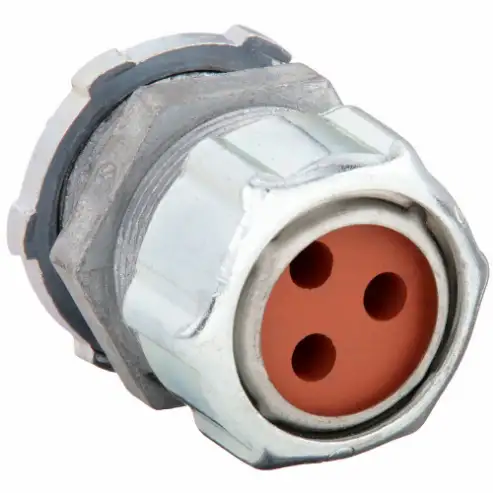

THOMAS & BETTS 5JPT4 Liquid Tight Cord Connector, Steel, 3 Cords, 1 Inch MNPT, 0.30 To 0.31 Inch Cord Dia.
€40.89 /unit
Request a Quote
Payment
Payment
| Item | Ground To Plate Connector |
| Body Color | Silver |
| Body Material | Steel |
| Box Connection | 1" MNPT |
| Collar Material | Steel |
| Compatible Conduit Trade Size | 1" |
| Compatible Conduit Type | Liquid Tight Cord Connector |
| Connection Orientation | Straight |
| Cord Dia. Range | 0.30" to 0.31" |
| Environmental Rating | General Purpose |
| For Maximum Cable Od | 0.31" |
| For Minimum Cable Od | 0.29" |
| For Use With | Cable Gland Connector |
| Grommet Color Code | No Code |
| Hazardous Location Rating | Not Rated |
| Hub Size | 1" |
| Insulated | No |
| Length - Box To End Of Connector | 1 3/4" |
| Liquid-tight | Yes |
| Material - External Strain Relief | No External Strain Relief |
| Maximum Operating Temperature | 221°F |
| Minimum Operating Temperature | -4°F |
| Number Of Cords | 3 |
| Overall Length | 1 3/4" |
| Resistance Properties | Corrosion Resistant |
| Series | MSG-M Series |
| Standards | CSA 52391, ROHS COMPLIANCE, UL E13938 |
| Strain Relief Type | No External Strain Relief |
| Thread Gender | Male |
| Thread Type | NPT |
| Ship weight (kg) | 0.14 |
