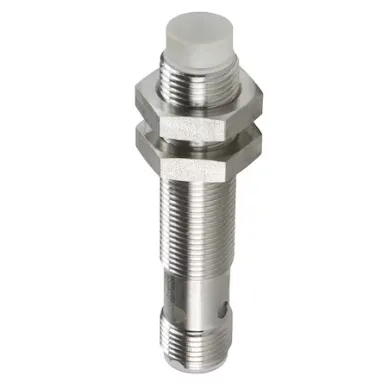

TELEMECANIQUE SENSORS XS512B1DBM12 Proximity Sensor, 12 mm Dc 2 Wire Xs5
Get it by Wednesday, Jun 18
Request a Quote
Payment
Get it by Wednesday, Jun 18
Payment
| Item | Proximity Sensor |
| Ac Supply Voltage Rating | Not Rated |
| Body Finish | Nickel Plated |
| Body Material | Brass |
| Dc Supply Voltage Rating | 12-48V |
| Display Qty | 1 |
| Electrical Connection | M12 |
| Electrical Installation Type | Direct Connector |
| Features | Overload Protection, Short Circuit Protection |
| Includes Indicator Lights | Indicator Lights Included |
| Ip Rating | IP67, IP69K |
| Load Current - Maximum | 100 mA |
| Number Of Pins | 4 |
| Number Of Wires | 2 |
| Operating Temperature - Maximum | 158°F |
| Operating Temperature - Minimum | -13°F |
| Output Circuit Contact Form | NC |
| Output Circuit Current - Maximum | 100 mA |
| Output Circuit Current - Minimum | 1.5 mA |
| Overall Height | 61 mm |
| Sensing Distance - Maximum | 2 mm |
| Sensing Method | Inductive |
| Sensor Body Style | Cylindrical |
| Sensor Diameter | 17 mm |
| Series | XS Series |
| Standards | CE, CSA, UL LISTED |
| Supply Voltage | 12-48V DC |
| Ship weight (kg) | 0.04 |
| Ship height (cm) | 4.2 |
| Ship length (cm) | 9.6 |
| Ship width (cm) | 6.7 |
| Country of Origin | FR |
