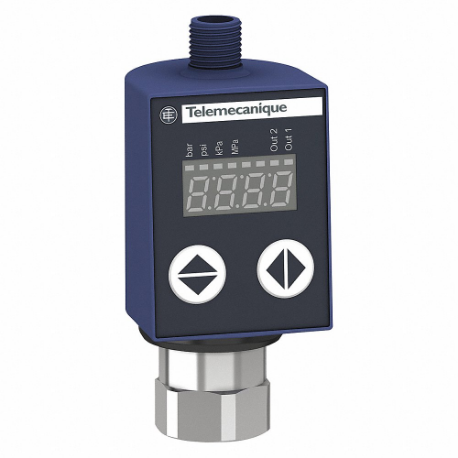

TELEMECANIQUE SENSORS XMLR160M2P09 Fluid and Air Pressure Sensor, 0 to 3625 PSI, PNP, Progra mmable
Get it by Tuesday, Jun 17
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Fluid and Air Pressure Sensor |
| Control Output | PNP |
| Display | 4 Digit LED |
| Electrical Connection | 4 Pin M12 Connector |
| Housing Material | Polyacrylamide, Stainless Steel |
| Max. Pressure | 13923.6 psi |
| On/off Setting | Programmable |
| Operating Temp. Range | -4°F to +176°F |
| Power Required | 24V DC |
| Process Connection Gender | Female |
| Process Connection Thread Type | Fine |
| Range | 0 psi to 3625 psi |
| Wetted Materials Grade | Stainless Steel, Ceramic, Fluorocarbon |
| Digital Output | PNP |
| Display Qty | 1 |
| Electrical Connection Type | 4 Pin M12 |
| Ip Rating | IP65, IP67 |
| Operating Temperature - Maximum | 176°F |
| Operating Temperature - Minimum | -4°F |
| Overall Depth | 1.65" |
| Overall Height | 3.7" |
| Overall Width | 1.61" |
| Pressure - Maximum | 2320 psi |
| Pressure - Minimum | 186 psi |
| Pressure Connection Type | 7/16-20" UNF |
| Proof Pressure | 13920 psi |
| Series | XMLR Series |
| Standards | CULUS, EAC, EN/IEC 61326-2-3, EU ROHS, UL 61010-1 |
| Voltage Rating - Maximum | 24V DC |
| Wetted Materials | Stainless Steel |
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Product | Model | Item | Price | |
|---|---|---|---|---|
 |
XMLR001G1P75 | Fluid and Air Pressure Sensor | - | RFQ
|
 |
XMLR001G1P26 | Fluid and Air Pressure Sensor | - | RFQ
|
|
XMLR001G1P25 | Fluid and Air Pressure Sensor | - | RFQ
|
|
XMLR001G1N26 | Fluid and Air Pressure Sensor | - | RFQ
|
 |
XMLR001G0T26 | Fluid and Air Pressure Sensor | - | RFQ
|
|
XMLR001G1N25 | Fluid and Air Pressure Sensor | - | RFQ
|
 |
XMLR001G2N06 | Fluid and Air Pressure Sensor | - | RFQ
|
