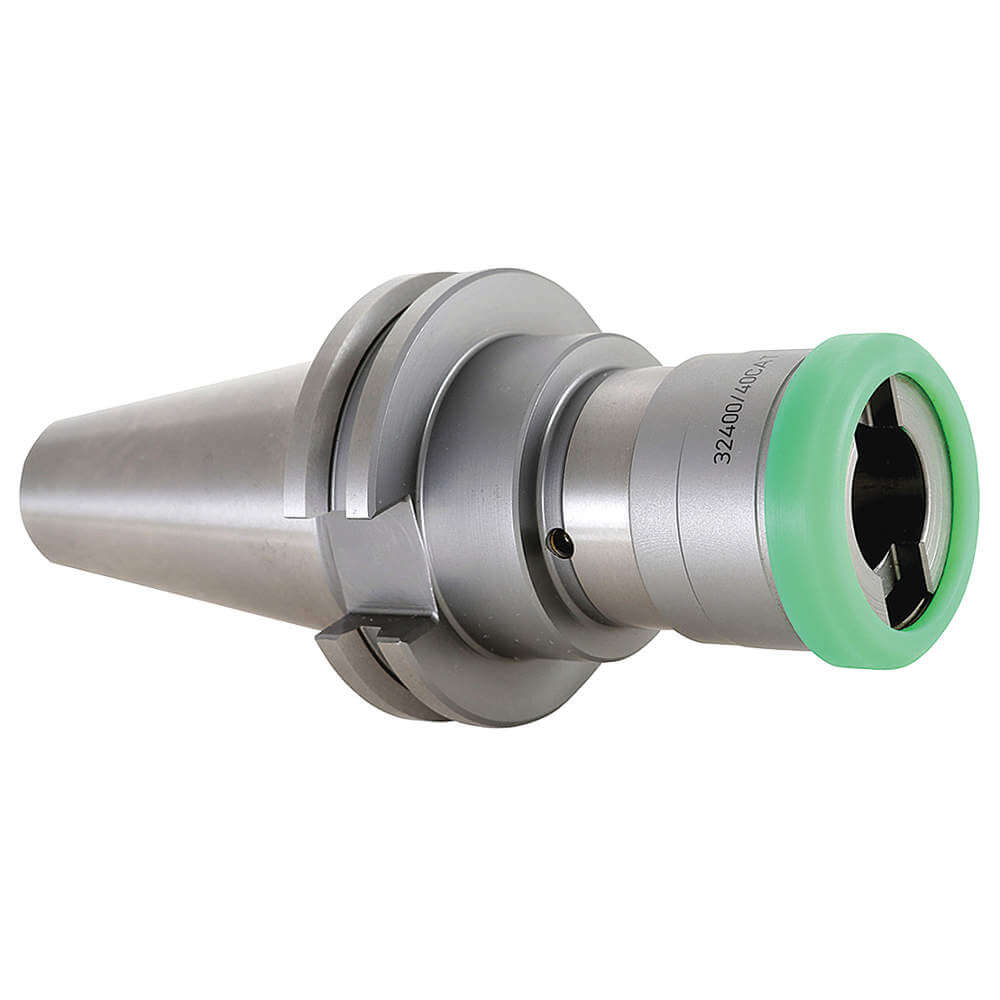

| Item | Collet Chuck |
| Diameter | 2" |
| Dimension Type | V Flange |
| Material | High Speed Steel , Steel |
| Max. Collet Capacity | 0.63" |
| Min. Collet Capacity | 0.039" |
| Nut Dia. | 2" |
| Projection | 3.94" |
| Body Diameter | 2 11/64" |
| Max Tap Size (inch) | 0.63" |
| Min Tap Size (inch) | 0.0390" |
| Quick-change Adapter Size | 2 |
| Shank Type | Taper |
| Taper Size | CAT40 |
| Tapping Style | Tension & Compression |
| Ship weight (kg) | 1.76 |
| Ship height (cm) | 7.87 |
| Ship length (cm) | 21.59 |
| Ship width (cm) | 7.62 |
| Country of Origin | IT |
| Product | Model | Capacity | Collet Series | Diameter | Dimension Type | Projection | Size | Price | |
|---|---|---|---|---|---|---|---|---|---|
 |
04788 | 0.0390" 0.787" | ER32 | 1.97" | Straight | 1.496" | - | €260.70 | |
 |
22225 | 0.0200" 0.406" | ER16 | 1.06" | V-Flange | 2.76" | CAT40 | €212.36 | |
|
22227 | 0.0200" 0.406" | ER16 | 1.06" | V-Flange | 4" | CAT40 | €216.02 | |
|
22235 | 0.0200" 0.512" | ER20 | 1.34" | V-Flange | 2.76" | CAT40 | €196.74 | |
|
22237 | 0.0200" 0.512" | ER20 | 1.34" | V-Flange | 4" | CAT40 | €214.76 | |
|
22239 | 0.0200" 0.512" | ER20 | 1.34" | V-Flange | 6" | CAT40 | €229.00 | |
 |
22245 | - | - | - | - | 4" | - | €231.21 |
