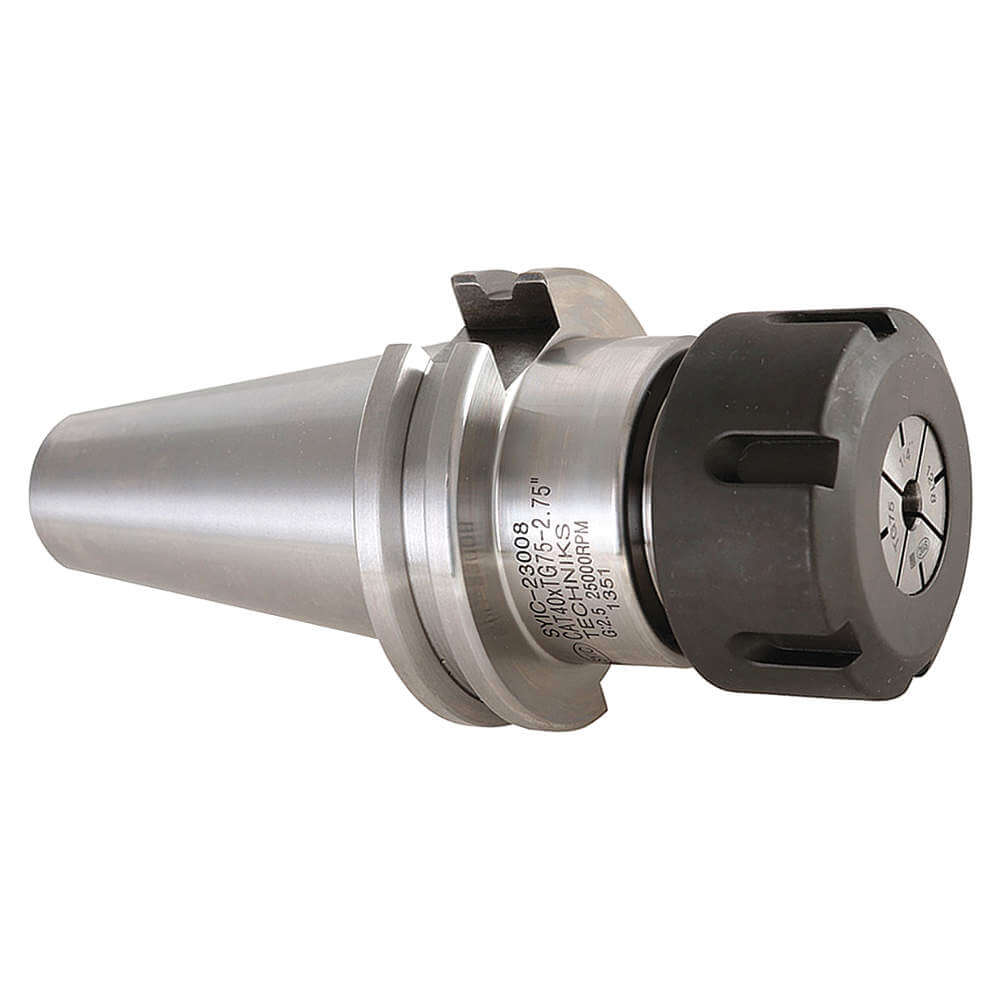

| Item | Tool Holder |
| Length | 6.69" |
| Nose Dia. | 2.362" |
| Outside Dia. | 2 1/2" |
| Overall Length | 6.69" |
| Projection | 4" |
| Range | 0.094" to 1" |
| Size | 6.69" |
| Style | Precision |
| Balance Rating | G2.5 |
| Compatible Backup Screw Model Number | 16093 |
| Compatible Collet Wrench | 83691 |
| Compatible Nut Model Number | 28110 |
| Contact Type | Single Contact |
| Coolant Screws | Coolant Screws Included |
| Coolant Supply | Coolant Through Spindle |
| For Collet Series | TG100 |
| For Max Collet Size | 1" |
| For Min Collet Size | 0.094" |
| Included Nut Type | Slotted |
| Max Speed | 25000 RPM |
| Nut | Nut Included |
| Nut Diameter | 2.362" |
| Outside Diameter - Maximum | 1.75" |
| Product Type | CAT Collet Chuck |
| Standards | DIN B |
| T.i.r. Tolerance | 0.0001" |
| Taper Size | CAT40 |
| Ship weight (kg) | 1.58 |
| Ship height (cm) | 16.99 |
| Ship length (cm) | 8.13 |
| Ship width (cm) | 8.13 |
| Country of Origin | TW |
