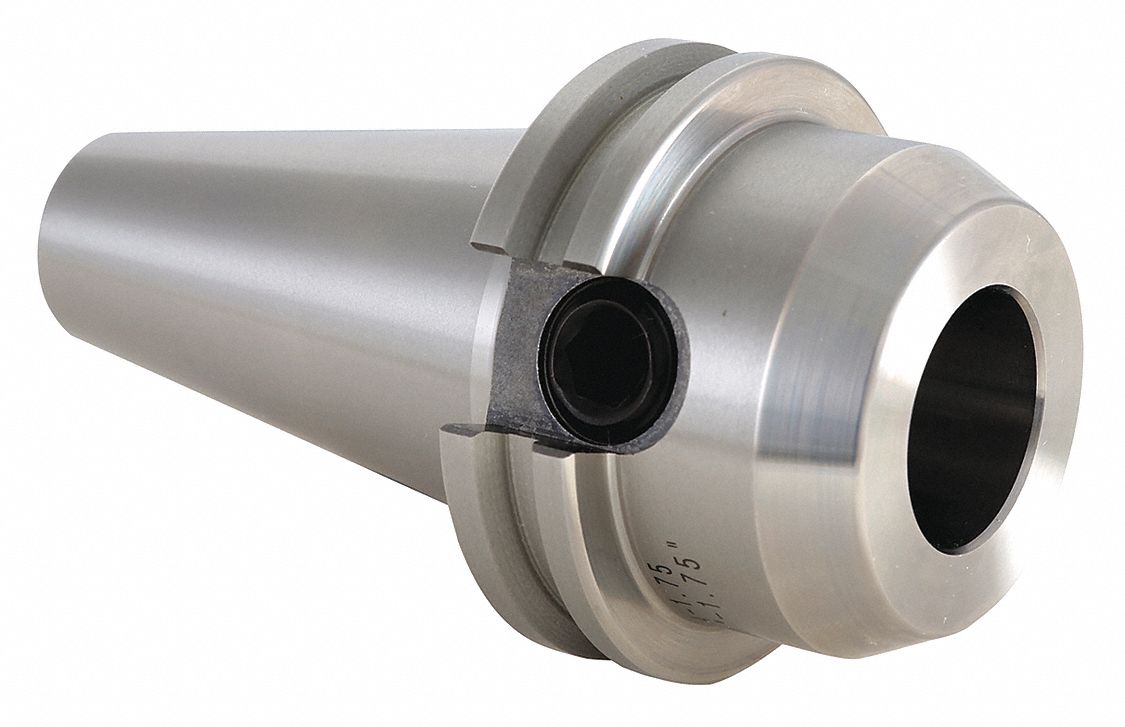

| Item | End Mill Holder |
| Bore Dia. | 1 1/4" |
| Coolant Fed | Coolant Through |
| Coolant Through | Yes |
| End | Single |
| End Type | Single End |
| Measurement System | Fractional Inch |
| Nose Dia. | 2 1/2" |
| Nose Type | Stubby |
| Projection | 2" |
| Shank Type | Taper |
| Thread Size | 3/4"-16 |
| Balance Rating | G6.3 |
| Body Diameter | 1.75" |
| Bore Diameter | 1.25" |
| Bore Tolerance | H5 |
| Contact Type | Single Contact |
| Coolant Supply | Coolant Through Spindle |
| Features | Balanced To 15, 000 RPM @ G6.3, Improved T.I.R. For Extended Cutting Tool Life, Increased Rigidity And Accuracy During Heavy Side Loads, Tapered Body Design Reduces Vibration And Enhances Rigidity |
| Head Diameter | 2 1/2" |
| Max Speed | 15000 RPM |
| Overall Diameter | 2 1/2" |
| Product Type | End Mill Holder |
| Set Screw Thread Size | 3/4" |
| T.i.r. Tolerance | 0.0002" |
| Taper Size | CAT40 |
| Ship weight (kg) | 1.19 |
| Country of Origin | Taiwan |
| Product | Model | Bore Depth | Bore Dia. | Item | Projection | Thread Size | Price | |
|---|---|---|---|---|---|---|---|---|
 |
17140-7/16 | - | 7/16" | End Mill Holder | 2 1/2" | 7/16-20 | €152.96 | |
 |
22911-6 | - | 1/4" | End Mill Holder | 6" | 1/4-28 | €154.51 | |
 |
22913-2.5 | - | 5/16" | End Mill Holder | 2 1/2" | 5/16-24 | €142.86 | |
|
22915-5 | - | 3/8" | End Mill Holder | 5" | 3/8-24 | €236.71 | |
|
22916-2.5 | - | 7/16" | End Mill Holder | 2 1/2" | 7/16-20 | €120.37 | |
|
22917-2.63 | - | 1/2" | End Mill Holder | 2 5/8" | 7/16-20 | €128.71 | |
 |
22917-4.72-RR | - | 1/2" | End Mill Holder | 4.72" | 7/16-20 | €211.25 |
