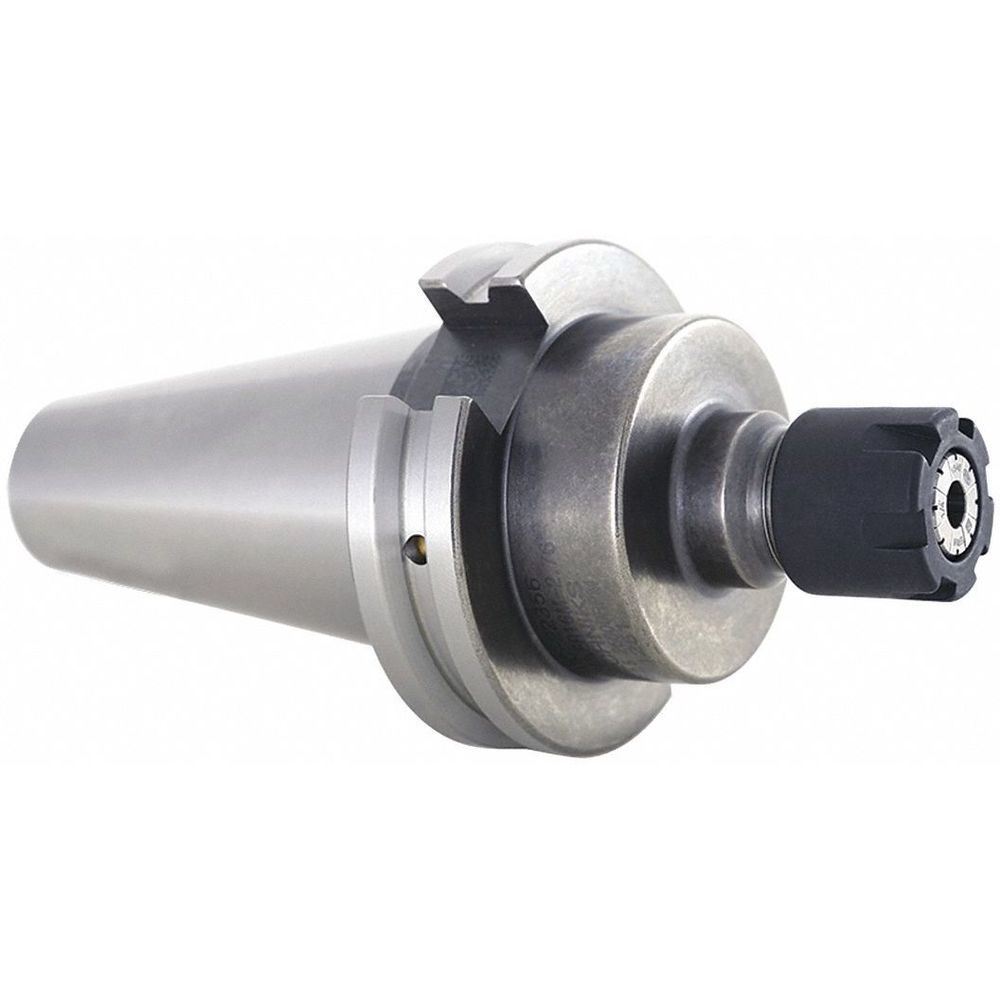

TECHNIKS 22352 Collet Chuck, 2.75 Inch Projection
€229.84 /unit
Request a Quote
Payment
Payment
| Item | Collet Chuck |
| Balanceable | Yes |
| Capacity | 0.019" |
| Collet Series | ER11 |
| Coolant Fed | Coolant Through |
| Coolant Through | Yes |
| Diameter | 0.63" |
| Dimension Type | V Flange |
| Features | Yes |
| For Use With | Wrench Mfr. No. 4621 |
| Material | High Speed Steel , Steel |
| Max. Collet Capacity | 0.281" |
| Min. Collet Capacity | 0.019" |
| Nose Dia. | 5/8" |
| Nut Dia. | 0.63" |
| Pre-balanced | Yes |
| Projection | 2 3/4" |
| Runout | Yes |
| Spindle | Yes |
| Balance Rating | G2.5 |
| Compatible Backup Screw Model Number | 16081 |
| Compatible Collet Wrench | 04621 |
| Compatible Nut Model Number | 23111 |
| Contact Type | Single Contact |
| Coolant Screws | Coolant Screws Included |
| Coolant Supply | Coolant Through Spindle |
| For Collet Series | ER11 |
| For Max Collet Size | 0.281" |
| For Min Collet Size | 0.019" |
| Included Nut Type | Mini |
| Max Speed | 25000 RPM |
| Nut | Nut Included |
| Nut Diameter | 0.63" |
| Outside Diameter - Maximum | 1.75" |
| Product Type | CAT Collet Chuck |
| T.i.r. Tolerance | 0.0001" |
| Taper Size | CAT40 |
| Ship weight (kg) | 1.08 |
| Product | Model | Capacity | Collet Series | Diameter | Dimension Type | Projection | Size | Price | |
|---|---|---|---|---|---|---|---|---|---|
 |
04788 | 0.0390" 0.787" | ER32 | 1.97" | Straight | 1.496" | - | €260.70 | |
 |
22225 | 0.0200" 0.406" | ER16 | 1.06" | V-Flange | 2.76" | CAT40 | €212.36 | |
|
22227 | 0.0200" 0.406" | ER16 | 1.06" | V-Flange | 4" | CAT40 | €216.02 | |
|
22235 | 0.0200" 0.512" | ER20 | 1.34" | V-Flange | 2.76" | CAT40 | €196.74 | |
|
22237 | 0.0200" 0.512" | ER20 | 1.34" | V-Flange | 4" | CAT40 | €214.76 | |
|
22239 | 0.0200" 0.512" | ER20 | 1.34" | V-Flange | 6" | CAT40 | €229.00 | |
 |
22245 | - | - | - | - | 4" | - | €231.21 |
