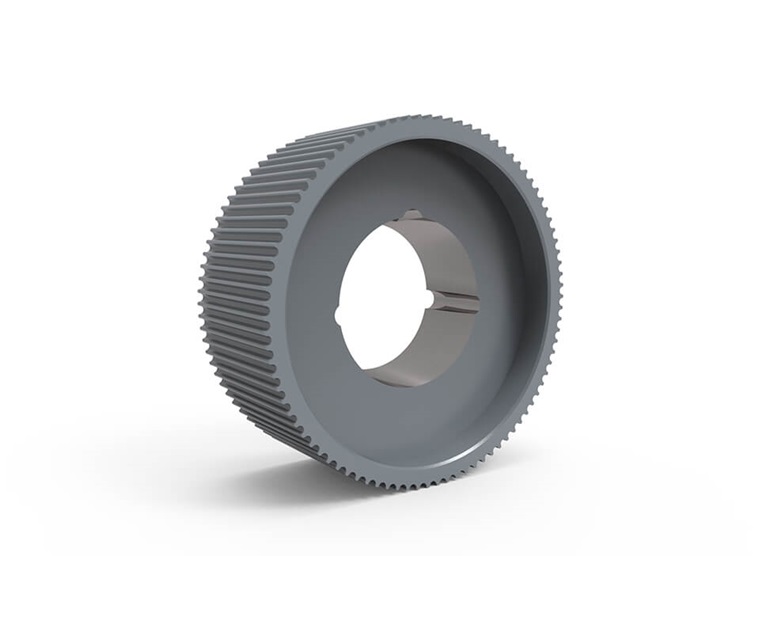

TB WOODS P908M85TL Synchronous Plus TL Belt Sprocket, Cast Iron, 85mm Belt Width, 9.023 inch Pitch Dia.
€831.49 /unit
Request a Quote
Payment
Payment
| Item | Sprocket |
| Belt Width | 85 mm |
| Bore Type | Taper Locking Bushing |
| Bushing Type | 3020 |
| Dimension E | 22/25" |
| Dimension L | 2" |
| Dimension M | 22/25" |
| Face Width | 3 3/4" |
| Hub Length | 2" |
| Inside Dia. | 7 22/25" |
| Material | Cast Iron |
| Max. Rpm | 2790 RPM |
| Number Of Teeth | 90 |
| Outside Dia. | 8.97" |
| Pitch Dia. | 9.023" |
| Product Type | Synchronous Plus TL |
| Rpm High | 2790 RPM |
| Weight | 30 lbs. |
| Ship weight (kg) | 13.5 |
| Ship length (cm) | 22.78 |
| Ship width (cm) | 22.78 |
| Product | Model | Belt Width | Dimension E | Dimension M | Face Width | Hub Dia. | Hub Length | Inertia Wr | Inside Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
P11214M115TL | 115mm | 0.38" | 0.38" | 5 1/4" | 10.5" | 4 1/2" | 44.7 lbs.-sq. ft. | 18.25" | €1,972.66 | RFQ
|
 |
P11214M40TL | 40mm | 0" | 0.13" | 2.13" | 6 1/4" | 2" | 17.4 lbs.-sq. ft. | 18.38" | €1,136.22 | RFQ
|
|
P11214M55TL | 55mm | 0" | 1 1/4" | 2 3/4" | 6 1/4" | 2" | 21.6 lbs.-sq. ft. | 18.38" | €1,315.26 | RFQ
|
 |
P11214M85TL | 85mm | 0" | 1/2" | 4" | 7 3/4" | 3 1/2" | 31.6 lbs.-sq. ft. | 18.25" | €1,493.87 | RFQ
|
 |
P1128M30TL | 30mm | 0.13" | 0.13" | 1 1/2" | 4.88" | 1 3/4" | 2.4 lbs.-sq. ft. | 10" | €616.12 | RFQ
|
 |
P1128M50TL | 50mm | 0" | 0.38" | 2.38" | 6 1/4" | 2" | 3.35 lbs.-sq. ft. | 10" | €775.12 | RFQ
|
 |
P1128M85TL | 85mm | 0.88" | 0.88" | 3 3/4" | 6 1/4" | 2" | 4.68 lbs.-sq. ft. | 10" | €1,000.24 | RFQ
|
