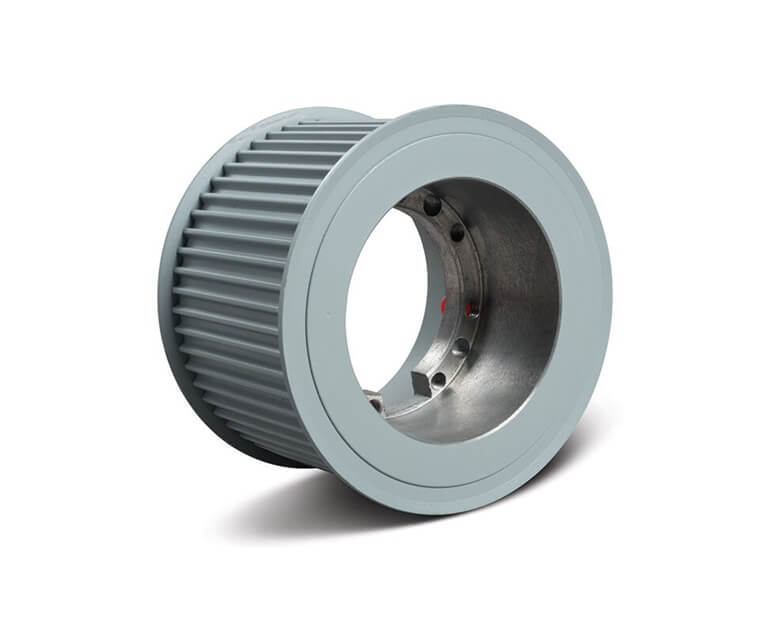

TB WOODS P568M85 Synchronous Plus Belt Sprocket, Ductile Iron, 85mm Belt Width, 5.614 inch Pitch Dia. | CD6TXR

TB WOODS P568M85 Synchronous Plus Belt Sprocket, Ductile Iron, 85mm Belt Width, 5.614 inch Pitch Dia.

Item: CD6TXRModel: P568M85
See variants (614)
Limited Availability
€371.17 /unit
Request a Quote

Payment

Product Specifications:

ItemSprocket
Belt Width85 mm
Bore TypeQuick Disconnect Bushing
BushingEL
ConstructionPlain
Dimension E1.38"
Dimension L1 1/2"
Dimension M2.38"
Face Width3 3/4"
Hub Length1 22/25"
Inside Dia.4.13"
MaterialDuctile Cast Iron , Ductile Iron
Max. Rpm6870 RPM
Number Of Teeth56
Outside Dia.5 14/25"
Pitch Dia.5.614"
Rpm High6870 RPM
Weight10.8 lbs.

Shipping Info:

Ship weight (kg) 4.86
Ship length (cm)14.12
Ship width (cm)14.12

Product Variants

ProductModelBelt WidthBore TypeDimension EDimension MFace WidthHub Dia.Hub LengthHub LocationPrice
TB WOODS 11505M15 Synchronous Plus Belt Sprocket, Neoprene, 15mm Belt Width, 1150mm Pitch Length | CE6DNZ 11505M1515mm--------
RFQ
TB WOODS 11505M25 Synchronous Plus Belt Sprocket, Neoprene, 25mm Belt Width, 1150mm Pitch Length | CE6DPA 11505M2525mm--------
RFQ
TB WOODS 13005M15 Synchronous Plus Belt Sprocket, Neoprene, 15mm Belt Width, 1300mm Pitch Length | CE6DPB 13005M1515mm--------
RFQ
TB WOODS 13005M25 Synchronous Plus Belt Sprocket, Neoprene, 25mm Belt Width, 1300mm Pitch Length | CE6DPC 13005M2525mm--------
RFQ
TB WOODS 14505M15 Synchronous Plus Belt Sprocket, Neoprene, 15mm Belt Width, 1450mm Pitch Length | CE6DPD 14505M1515mm--------
RFQ
TB WOODS 14505M25 Synchronous Plus Belt Sprocket, Neoprene, 25mm Belt Width, 1450mm Pitch Length | CE6DPE 14505M2525mm--------
RFQ
TB WOODS 16005M15 Synchronous Plus Belt Sprocket, Neoprene, 15mm Belt Width, 1600mm Pitch Length | CE6DPF 16005M1515mm--------
RFQ
