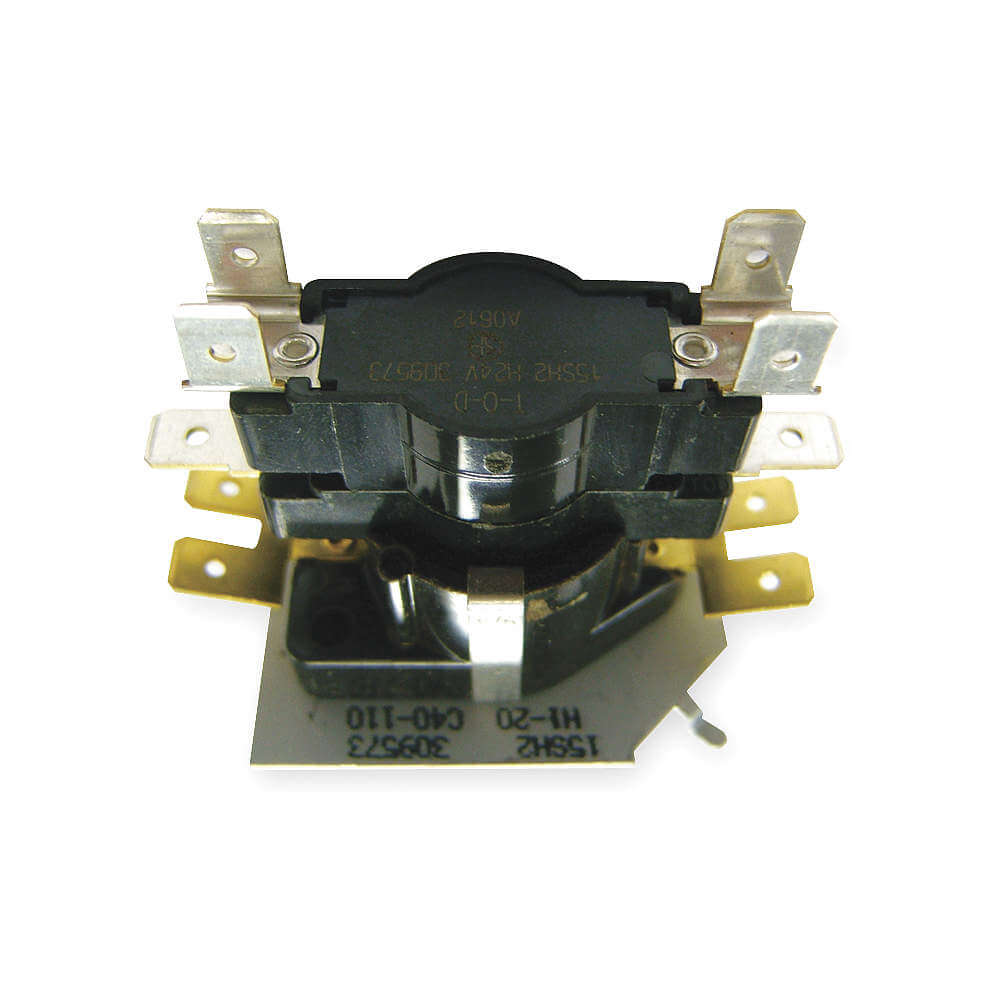

| Item | Electric Sequencer |
| Control Voltage | 24V |
| Depth | 2" |
| Full Load Amps @ 120v | 14A |
| Full Load Amps @ 240vac | 7A |
| Height | 1 7/8" |
| Locked Rotor Amps @ 120v | 72A |
| Locked Rotor Amps @ 240v | 42A |
| Number Of Switches | 3 |
| Resistive Amps @ 120v | 25A |
| Width | 3 1/4" |
| Application | Electric Furnaces, Gas Furnaces, Heat Pumps, Oil Furnaces |
| Auxiliary Switch Off Maximum | 110 sec. |
| Auxiliary Switch Off Minimum | 1 sec. |
| Auxiliary Switch On Maximum | 110 sec. |
| Auxiliary Switch On Minimum | 1 sec. |
| Full Load Amps @ 120v Ac | 14A |
| Full Load Amps @ 240v Ac | 7A |
| Locked Rotor Amps @ 120v Ac | 72A |
| Locked Rotor Amps @ 240v Ac | 42A |
| Main Switch Off Maximum | 110 sec. |
| Main Switch Off Minimum | 1 sec. |
| Main Switch On Maximum | 110 sec. |
| Main Switch On Minimum | 1 sec |
| Number Of Timings | 2 |
| Operating Temperature - Maximum | 165°F |
| Operating Temperature - Minimum | -50°F |
| Overall Depth | 2" |
| Overall Length | 1 7/8" |
| Overall Width | 3 1/4" |
| Pilot Duty @ 120v Ac | 125 VA |
| Pilot Duty @ 240v Ac | 125 VA |
| Resistive Load Amps @ 120v Ac | 25A |
| Resistive Load Amps @ 240v Ac | 25A |
| Standards | CSA, UL LISTED |
| Voltage | 24V AC |
