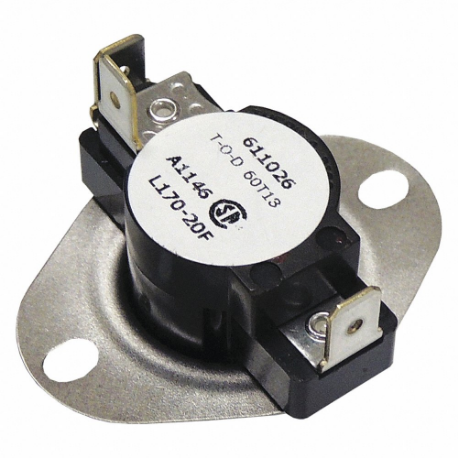

SUPCO LD170 Thermostat, 150 Deg F Switch Closes at F, 170 Deg F Switch Opens at F, 120 to 240
Get it by Tuesday, Jun 17
€7.05 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Thermostat |
| Application | Limit Control With Fan Bypass |
| Circuit #1 Switch Closes @ (f) | 150°F |
| Circuit #1 Switch Opens @ (f) | 170°F |
| Circuit No. 1-inductive 120v | 14 |
| Circuit No. 1-inductive 240v | 10 |
| Depth | 1 1/2" |
| Differential | 20°F |
| Element Type | Insertion |
| Height | 1" |
| Inductive Amps @ 120v | 14A |
| Inductive Amps @ 240v | 10A |
| Mounting | Surface Mount |
| Mounting Base Width | 1 5/8" , 2" , 25A |
| Overall Depth | 1 1/2" |
| Overall Height | 1" |
| Overall Width | 2" |
| Pilot Duty Contacts (va) | 125 VA |
| Reset Type | Automatic Reset |
| Resistive Amps @ 120v | 25A |
| Resistive Rating 240v | 25A |
| Resistive Rating Circuit #1 @120/240v | 25 |
| Switch Action | Open On Rise |
| Switch Closes @ (f) | 150°F |
| Switch Closing Temp. | 150°F |
| Switch Opening Temp. | 170°F |
| Switch Opens @ (f) | 170°F |
| Switch Type | SPDT |
| Temp. Range | +150°C to +170°C |
| Type | Automatic Reset, Limit |
| Voltage Range | 120-240V |
| Width | 2" |
| Contact Form | SPDT |
| Input Voltage | 240V AC |
| Maximum Control Temperature | 170°F |
| Minimum Control Temperature | 150°F |
| Mounting Base Length | 2" |
| Product Type | Thermostat |
| Resistive Amps @ 120v Ac | 25A |
| Resistive Amps @ 240v Ac | 25A |
| Series | LD Series |
| Standards | CSA CERTIFIED, UL LISTED |
| Switch Closing Temperature | 150°F |
| Switch Opening Temperature | 170°F |
| Temperature Differential | 20°F |
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 3.81 |
| Ship width (cm) | 5.08 |
| Country of Origin | MX |
