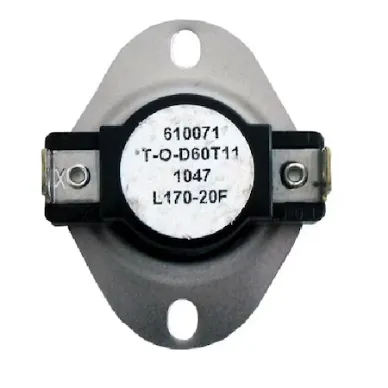

SUPCO L170 Snap Disc Control
Get it by Tuesday, Jun 17
€3.53 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Snap Disc Control |
| Application | Limit Control |
| Mounting | Surface Mount |
| Mounting Base Width | 1 5/8" , 125 VA , 2" , 25A , Quick Connect |
| Mounting Hole Center To Center Distance | 1 5/8" |
| Overall Height | 2" |
| Overall Width | 1 5/8" |
| Reset Type | Automatic Reset |
| Resistive Amps @ 120v | 25A |
| Switch Action | Open On Rise |
| Terminal Size | 1/4" |
| Contact Form | SPST |
| Input Voltage | 240V AC |
| Mounting Base Length | 2" |
| Pilot Contact Rating | 125 VA |
| Product Type | Temperature Limit Controller |
| Resistive Amps @ 120v Ac | 25A |
| Resistive Amps @ 240v Ac | 25A |
| Series | L |
| Standards | CSA CERTIFIED, UL LISTED |
| Switch Closing Temperature | 150°F |
| Switch Opening Temperature | 170°F |
| Temperature Differential | 20°F |
| Wire Connections | Quick Connect |
| Ship weight (kg) | 0.02 |
