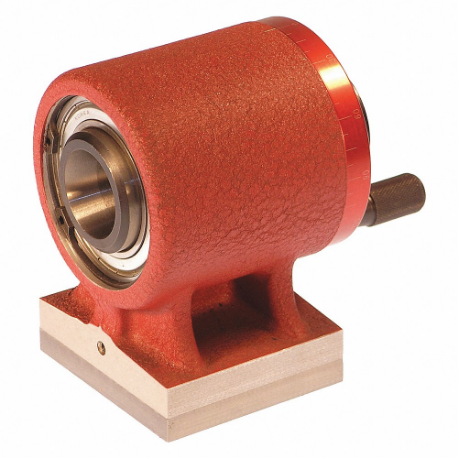

| Item | Fixture |
| Base Length | 3.406" |
| Features | Maximum Spindle Runout: 0.0001 In, Spindle Rides In Two SeaLED And Pre-Loaded Ball Bearings |
| Includes | Drawbar, Wooden Case |
| Number Of Positions | 48 |
| Overall Height | 5.562" |
| Overall Length | 6.406" |
| Base Width | 3 3/4" |
| Centerline Height | 3 5/8" |
| Compatible Collet Series | Series 5C |
| Compatible Collet Size - Maximum | 1 1/8" |
| Compatible Collet Size - Minimum | 0.063" |
| Index Increments | 7 1/2° |
| Overall Width | 4.41" |
| Parallelism | 0.0002" |
| Squareness | 0.0002" |
| T.i.r. Tolerance | 0.0001" |
| Through Hole Diameter | 1 1/4" |
| Ship weight (kg) | 6.26 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
