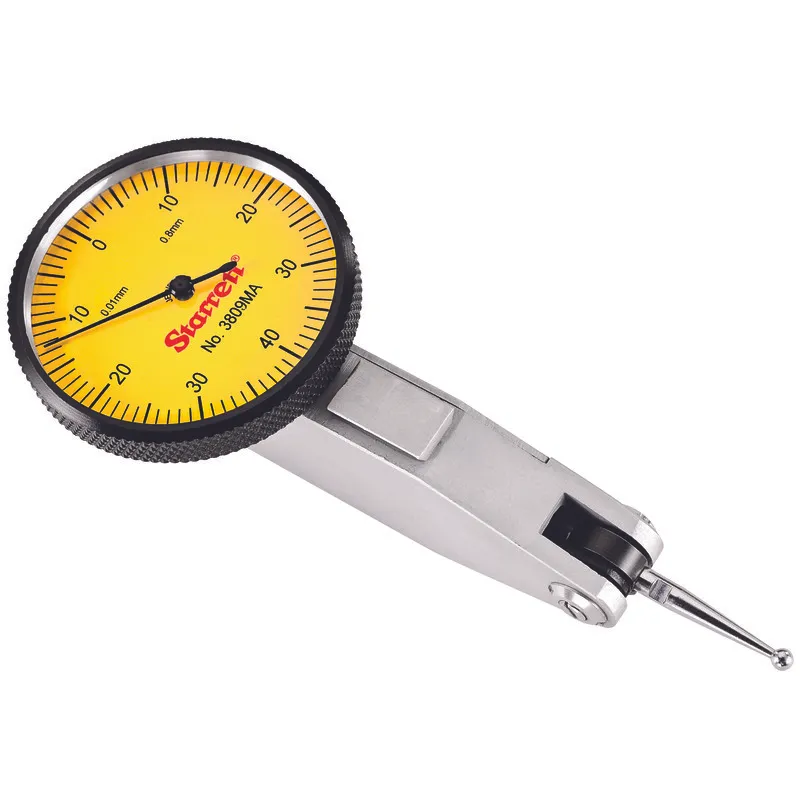

| Item | Dial Test Indicator |
| Accuracy | -0.01 mm to +0.01 mm |
| Bearing Type | Jeweled |
| Contact Point Dia. | 2 mm, 4 mm |
| Contact Point Length | 1/2" |
| Contact Point Material | Steel |
| Contact Point Shape | Ball |
| Contact Point Style | Ball |
| Dial Color | Yellow |
| Dial Reading | 0 to 40 |
| Dial Size | 1 1/4" |
| Dimension Type | Metric |
| Features | Three Dovetail Positioning Mounts Work With Most Existing Test Indicator Accessories |
| Graduations | 0.01 mm |
| Includes | 4 Mm Swivel Post Holder, 9.5 Mm Dovetail Clamp, Contact Wrench, Tool Post Holder |
| Includes Case | Yes |
| Includes Dovetail Mount Attachments | Yes |
| Indicator Style | Horizontal |
| Long Form Calibration Certificate | No |
| Maximum Measurement | 0.8 mm |
| Min. Measurement | 0 mm |
| Mounting Style | Dovetail |
| Non Magnetic Tip | No |
| Number Of Indicators | 1 |
| Operation Type | Lever-Style |
| Range | 0 mm to 0.8 mm |
| Range Per Revolution | 4/5" |
| Reading | Balanced |
| Stylus Length | 0.1875", 20 mm |
| Test Indicator Style | Horizontal |
| Contact Point Dia. | 2 mm, 4 mm |
| Contact Point Material | Steel |
| Contact Point Shape | Ball |
| Includes Case | Yes |
| Includes Dovetail Mount Attachments | Yes |
| Long Form Calibration Certificate | No |
| Maximum Measurement | 0.8 mm |
| Maximum Measurement - Mm | 0.8 mm |
| Minimum Measurement - Mm | 0 mm |
| Non Magnetic Tip | No |
| Non-magnetic Tip | No |
| Standards | ANSI |
| Test Indicator Style | Horizontal |
| Ship weight (kg) | 0.32 |
| Ship height (cm) | 4.45 |
| Ship length (cm) | 15.24 |
| Ship width (cm) | 10.16 |
| HS code | 9017308000 |
| Country of Origin | CN |
