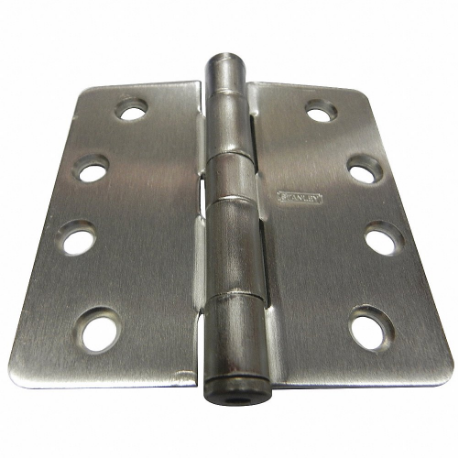

| Item | Butt Hinge |
| Bearing Type | Plain |
| Corner Radius | 1/4" |
| Door Leaf Height | 4" |
| Door Leaf Thickness | 0.13" |
| Door Leaf Width | 1 1/2" |
| Finish | Satin |
| Frame Leaf Height | 4" |
| Frame Leaf Thickness | 0.13" |
| Frame Leaf Width | 2" |
| Hardware | Included |
| Hinge Number | #1 Standard |
| Holes | With |
| Holes Per Leaf | 4 |
| Ligature Resistant | No |
| Load Capacity | 75 lbs. |
| Mounting | Full Mortise |
| Number Of Wires | 0 |
| Orientation | Non Handed |
| Overall Knuckle Height | 0.438" |
| Pin Dia. | 0.312" |
| Pin Material | Steel |
| Pin Type | Removable |
| Range Of Motion | 270° |
| Required Door Thickness | 1 3/8" to 3" |
| Corner Type | Radius |
| Features | For Use On Internal Or External Doors Without Door Closers, Hinges Can Be Furnished With Hospital Tips (HT), Template Screw Hole Location |
| Includes Hardware | Hardware Included |
| Material | Steel |
| Mounting Style | Full Mortise |
| Number Of Holes Per Leaf | 4 |
| Overall Height | 4" |
| Overall Width | 4" |
| Pin Diameter | 5/16" |
| Range Of Motion - Maximum | 270° |
| Removable Pin | Yes |
| Standards | ANSI, BHMA |
| Ship weight (kg) | 0.38 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Product | Model | Price | |
|---|---|---|---|
 |
BB8555X6DBLWTDOORHINGEPSTL | €230.93 | |
 |
F179 3 5X3 5 26D STL | €9.26 | |
 |
F17935X35FMSWDOORHINGE15STL | €11.29 | |
|
FBB17935X35DOORHINGE3STL | €25.13 | |
 |
FBB191NRP 4 5X4 5 32D STS | €95.18 | |
 |
FBB191 4 5X4 5 26D BR | €52.55 | |
 |
FBB199NRP 5X4 5 32D STS | €123.05 |
