Get it by Tuesday, Jun 17
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
Payment

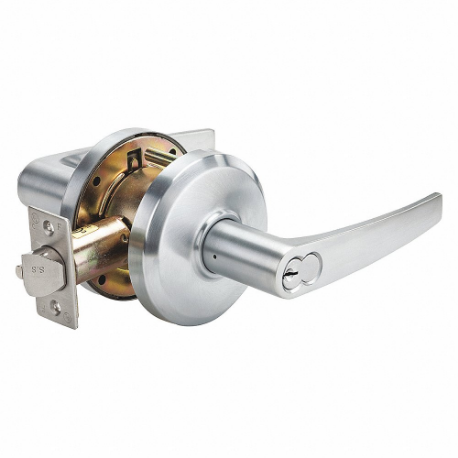

| Item | Door Lever Lockset |
| Ada Compliant | Yes |
| Backset | 2 3/4" |
| Cylinder Core Type | SFIC Not Included |
| Electrical/mechanical | Mechanical |
| Features | Easy Install, Non-Handed |
| Finish | Satin Chrome |
| For Use With | Various Door Types |
| Handle Material | Brass, Bronze, Steel |
| Handle Type | Lever |
| Includes | Latch, Lever, Strike |
| Key Type | Not Keyed |
| Keyway Type | None |
| Ligature Resistant | No |
| Lockset Performance Strength | Standard Duty |
| Mortise / Cylindrical | Cylindrical |
| Number Of Keys | 0 |
| Pins | 0 |
| Required Door Thickness | 1 3/4" |
| Strike Dim. | 4 7/8" x 1 1/4" |
| Strike Type | ANSI |
| Style | CE Cylindrical |
| Visual Indicator Message | No Message |
| Ansi Grade | Grade 2 |
| Ansi Lockset Function | Entrance |
| Bolt Type | Latch Bolt |
| Door Thickness - Maximum | 2" |
| Door Thickness - Minimum | 1 3/8" |
| Fire Rating | 3 hrs. |
| General Lockset Function | Office Lever Locksets |
| Hand Orientation | Non Handed |
| Includes Core | Core Not Included |
| Knob/handle Material | Cast Zinc |
| Ligature Resistance | Not Ligature Resistant |
| Location Type | Commercial, Hospitals, Multiple Family Residential |
| Lock Assembly Type | Cylindrical |
| Lockset Function Ansi Code | F109 |
| Lockset Handle Type | Lever |
| Lockset Style | QCL Slate |
| Lockset Type | Mechanical |
| Mounting Style | Through Hole |
| Number Of Pins | 6 |
| Performance Duty Rating | 2 |
| Properties | Vandal Resistant |
| Standards | ANSI A117.1, ANSI/BHMA A156.2, CALIFORNIA STATE REFERENCE CODE (FORMERLY TITLE 19 - FIRE MARSHAL) HURRICANE COMPLIANT - MIAMI DADA N.O.A, UL AND CUL LISTED |
| Strike Plate Height | 4 7/8" |
| Strike Plate Width | 1 1/4" |
| Ul Fire Rating | UL10B, UL10C |
| Ship weight (kg) | 1.73 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | TW |
| Model | Backset | Grade | Handle Material | Item | Keying | Keyway Type | Required Door Thickness | Strike Dim. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| QCL140M626S4478S | 2.75" | 1 | Pressure Cast Zinc | Lever | Unkeyed | - | 1-3/8" to 2" | 1-1/4" and 4-7/8" | €327.71 | |
| QCL151M626S4478SLC | 2.75" | 1 | Pressure Cast Zinc | Lever | Keyed Different | Less Cylinder | 1-3/8" to 2" | 1-1/4" and 4-7/8" | €391.38 | |
| QCL161M626S4478SLC | 2.75" | 1 | Pressure Cast Zinc | Lever | Keyed Different | Less Cylinder | 1-3/8" to 2" | 1-1/4" and 4-7/8" | €291.85 | |
| QCL171M626S4478SLC | 2.75" | 1 | Pressure Cast Zinc | Lever | Keyed Different | Less Cylinder | 1-3/8" to 2" | 1-1/4" and 4-7/8" | €373.44 | |
| QCL220M626 | 2.75" | 2 | Pressure Cast Zinc | Lever | Unkeyed | - | 1-3/8" to 2" | 1-1/4 " x 4-7/8" | €96.53 | |
| QCL230M626S4478S | 2.75" | 2 | Pressure Cast Zinc | Lever | Unkeyed | - | 1-3/8" to 2" | 1-1/4" and 4-7/8" | €128.72 | |
| QCL240M626S4478S | 2.75" | 2 | Pressure Cast Zinc | Lever | Unkeyed | - | 1-3/8" to 2" | 1-1/4" and 4-7/8" | €148.76 |
