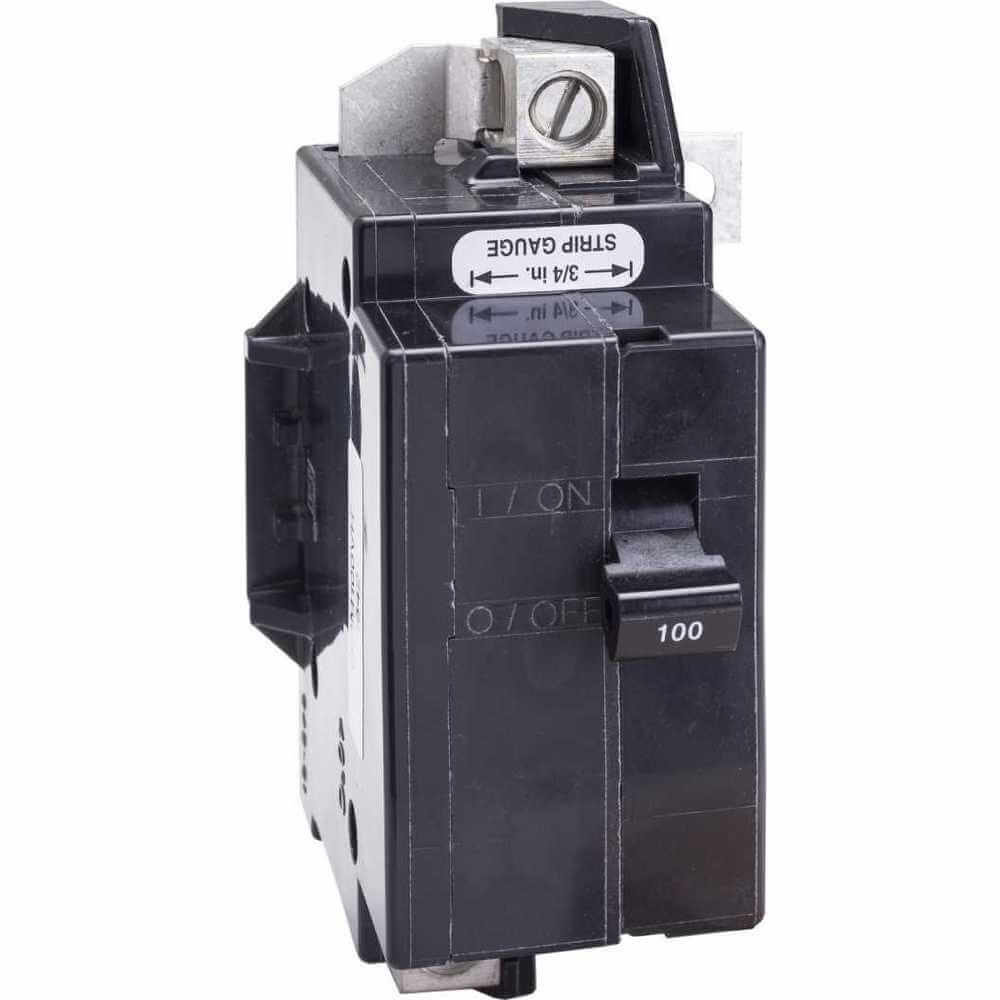

| Item | Bolt On Circuit Breaker |
| Ac Voltage Rating | 240V AC |
| Air @ 120v Ac | 22 kA |
| Air @ 240vac | 22 kA |
| Amps | 100A |
| Circuit Breaker Type | Main Breaker |
| Dc Voltage | Not Rated |
| Depth | 3.47" |
| Frame Size | 100A/QO |
| Length | 5.09" |
| Max. Air Rating | 22 kA |
| Min. Wire Size | 12 AWG |
| Number Of Poles | 2 |
| Terminal Connection | Lug |
| Terminal Connection Type | Lug |
| Width | 5" |
| Accessory Type | Miniature Circuit Breaker |
| Circuit Breaker Actuator | Paddle |
| Circuit Breaker Mounting Style | Bolt On |
| Compatible Panelboard/load Center Series | QO |
| Dc Voltage Rating | Not Rated |
| For Use With | Square D 125 Amp Single Phase Convertible Load Centers (QOM1 Frame Size) |
| Max. Operating Temp. | 104°F |
| Max. Wire Size | 2 AWG |
| Min. Operating Temp. | 77°F |
| Standards | UL LISTED |
| Ship weight (kg) | 0.63 |
| Ship height (cm) | 10.67 |
| Ship length (cm) | 13.21 |
| Ship width (cm) | 10.67 |
| HS code | 8536200020 |
| Country of Origin | MX |
