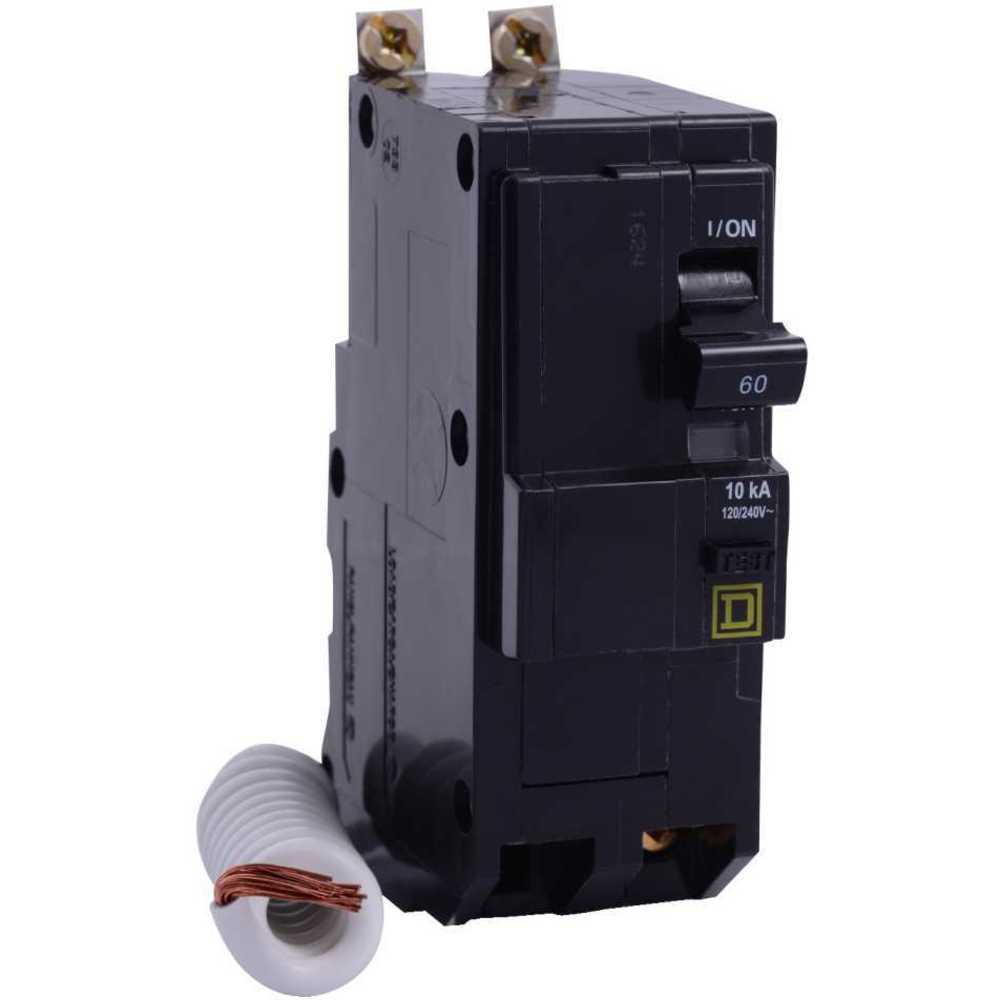

| Item | Bolt On Circuit Breaker |
| Ac Voltage Rating | 120/240V AC |
| Amps | 60A |
| Circuit Breaker Type | Ground Fault Equipment Protection |
| Dc Voltage | Not Rated |
| Depth | 2.91" |
| Frame Size | 100A/QO |
| Length | 3" |
| Max. Air Rating | 10 kA |
| Min. Wire Size | 12 AWG |
| Number Of Poles | 2 |
| Terminal Connection | Lug |
| Terminal Connection Type | Lug |
| Width | 1 1/2" |
| Circuit Breaker Actuator | Paddle |
| Circuit Breaker Mounting Style | Bolt On |
| Compatible Panelboard/load Center Series | NQ, QO |
| Dc Voltage Rating | Not Rated |
| For Use With | QO Load Centers And NQ Panelboards |
| Max. Operating Temp. | 104°F |
| Max. Wire Size | 4 AWG (Al), 6 AWG (Cu) |
| Min. Operating Temp. | 77°F |
| Phase | Single |
| Standards | UL LISTED |
| Ship weight (kg) | 0.43 |
| Ship height (cm) | 7.39 |
| Ship length (cm) | 10.46 |
| Ship width (cm) | 3.81 |
| HS code | 8536200020 |
| Country of Origin | MX |
Contact your account manager right away to get personal advice.
We're available Monday through Friday, from 07:30 until 17:00.
In Stock : 6 Units
