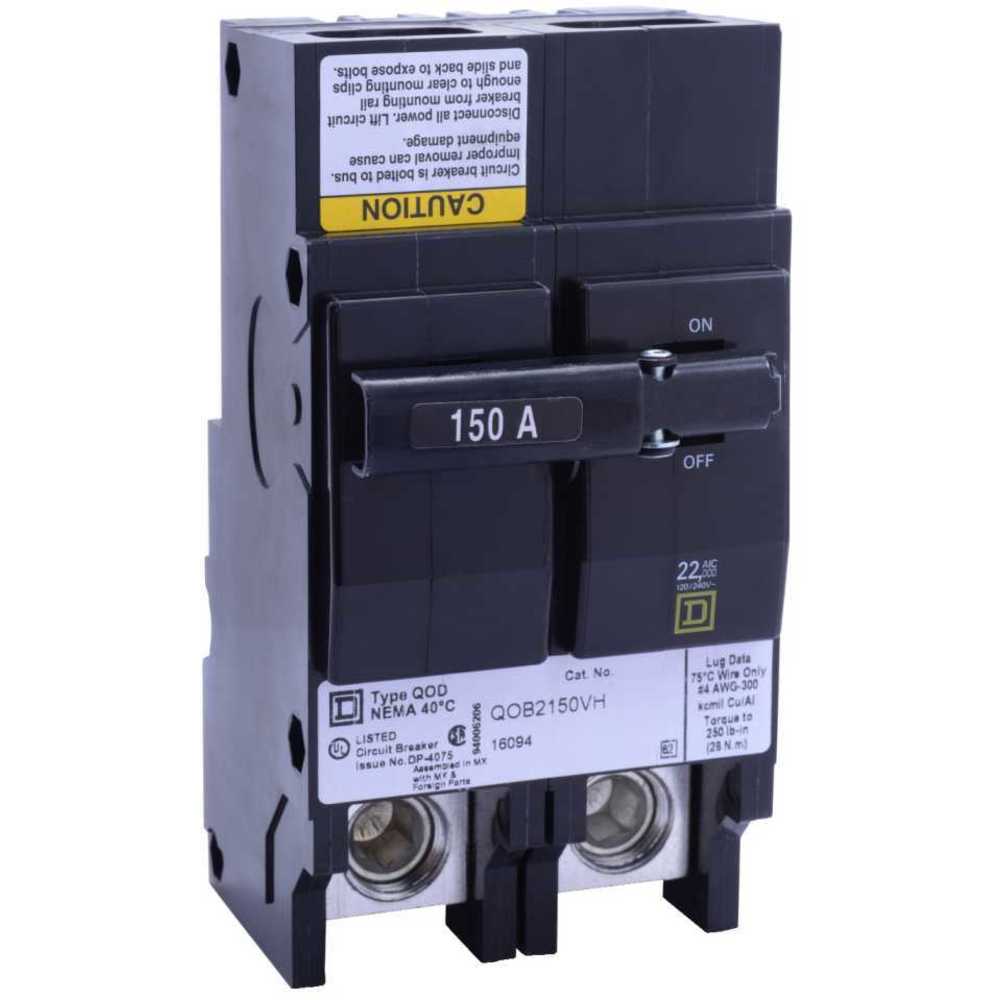

| Item | Bolt On Circuit Breaker |
| Ac Voltage Rating | 120/240V AC |
| Amps | 150A |
| Circuit Breaker Type | High Interrupting Capacity |
| Dc Voltage | Not Rated |
| Depth | 2.91" |
| Frame Size | 100A/QO |
| Length | 3 1/2" |
| Max. Air Rating | 22 kA |
| Max. Wire Size | 300 kcmil |
| Min. Wire Size | 4 AWG |
| Number Of Poles | 2 |
| Terminal Connection | Lug |
| Terminal Connection Type | Lug |
| Width | 1 1/2" |
| Circuit Breaker Actuator | Paddle |
| Circuit Breaker Mounting Style | Bolt On |
| Compatible Panelboard/load Center Series | QO |
| Dc Voltage Rating | Not Rated |
| For Use With | Square D NQOD Panelboards |
| Max. Operating Temp. | 104°F |
| Min. Operating Temp. | 77°F |
| Phase | Single |
| Standards | UL LISTED |
| Ship weight (kg) | 1.19 |
| Ship height (cm) | 10.16 |
| Ship length (cm) | 16.26 |
| Ship width (cm) | 8.89 |
| HS code | 8536200020 |
| Country of Origin | MX |
