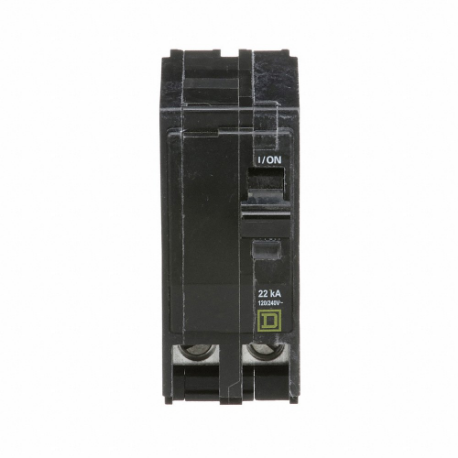

| Item | Miniature Circuit Breaker |
| Ac Voltage Rating | 120/240V AC |
| Amps | 25A |
| Circuit Breaker Actuator | Paddle |
| Circuit Breaker Mounting Style | Plug In |
| Circuit Breaker Type | High Interrupting Capacity |
| Dc Voltage | Not Rated |
| Depth | 2.91" |
| For Use With | QO Load Centers And NQ Panelboards |
| Frame Size | 100A/QO |
| Length | 3" |
| Mfr. Series | QO |
| Number Of Poles | 2 |
| Terminal Connection Type | Pressure Plate |
| Width | 1 1/2" |
| Wire Size | 12 AWG, 14 AWG , 8 AWG |
| Compatible Panelboard/load Center Series | QO |
| Dc Voltage Rating | Not Rated |
| Max. Air Rating | 22 kA at 120/240V AC |
| Max. Wire Size | 8 AWG |
| Min. Wire Size | 12 AWG (Al), 14 AWG (Cu) |
| Phase | Single |
| Standards | UL LISTED |
| Terminal Connection | Pressure Plate |
| Ship weight (kg) | 0.25 |
| Ship height (cm) | 7.39 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 3.81 |
