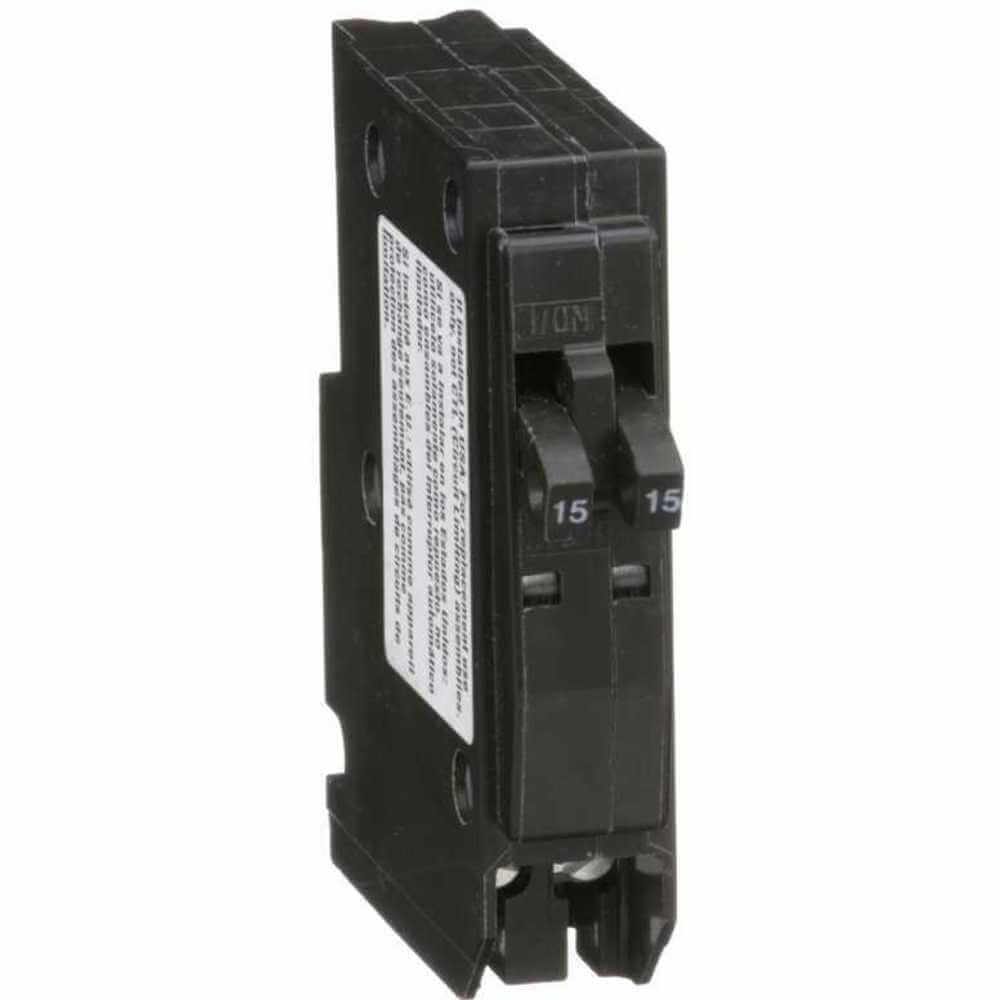

| Item | Plug In Circuit Breaker |
| Ac Voltage Rating | 120/240V AC |
| Air @ 120v Ac | 10 kA |
| Air @ 240vac | 10 kA |
| Circuit Breaker Type | Tandem |
| Dc Voltage | Not Rated |
| Depth | 2.91" |
| Length | 3" |
| Max. Air Rating | 10 kA |
| Number Of Poles | 1 |
| Terminal Connection Type | Screw Clamp |
| Width | 3/4" |
| Wire Size | 14 AWG |
| Amps | 15A |
| Circuit Breaker Actuator | Paddle |
| Circuit Breaker Mounting Style | Plug In |
| Compatible Panelboard/load Center Series | QO |
| Dc Voltage Rating | Not Rated |
| For Use With | QO Load Centers And NQ Panelboards |
| Frame Size | 100A/QO |
| Max. Wire Size | 8 AWG |
| Min. Wire Size | 12 AWG (Al), 14 AWG (Cu) |
| Phase | Single |
| Standards | UL LISTED |
| Terminal Connection | Lug |
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 7.09 |
| Ship length (cm) | 8.03 |
| Ship width (cm) | 1.09 |
| HS code | 8536200020 |
| Country of Origin | MX |
