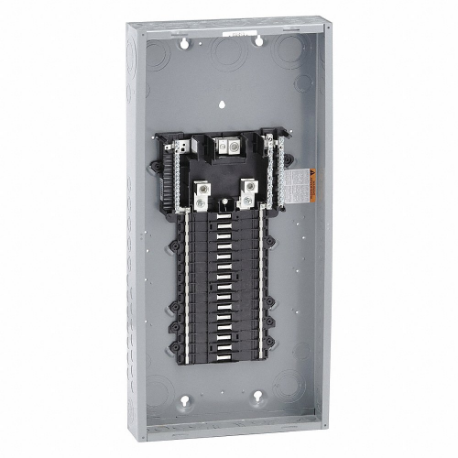

| Item | Load Center |
| Amps | 200A |
| Bus Material | Tin Plated Copper |
| Circuit Breaker Type | QO |
| Color | Gray |
| Depth | 3 3/4" |
| Enclosure Material | Steel |
| Enclosure Surface Finish | Enamel |
| For Use With | Square D QO Circuit Breakers |
| Height | 29 21/25" |
| Included Enclosure Cover | Order Separately |
| Location | Indoor |
| Main Circuit Breaker Or Main Lug | Convertible, Main Lug |
| Max. No. Of Tandem Breakers | 10 |
| Max. Operating Temp. | 104°F |
| Min. Operating Temp. | 23°F |
| Number Of Spaces | 30 |
| Phase | 1 |
| Recommended Flush Cover | 1D435 |
| Recommended Ground Bar Kit | Included |
| Recommended Surface Cover | 1D436 |
| Short Circuit Amps Rating | 65 kA |
| Special Features | Mercury Free |
| Voltage | 120/240V AC |
| Width | 14 1/4" |
| Enclosure Nema Rating | 1 |
| Feed Location | Bottom/Top |
| Short Circuit Current Rating | 65 kA |
| Standards | ROHS COMPLIANT, UL LISTED |
| Ship weight (kg) | 7.56 |
| Ship height (cm) | 75.79 |
| Ship length (cm) | 9.53 |
| Ship width (cm) | 36.2 |
| Country of Origin | US |
| Product | Model | Price | |
|---|---|---|---|
 |
QOC30UFWG | €144.52 | |
 |
QOC32UF | €49.07 | |
 |
QO112M100PC | €297.90 | |
 |
QO112M100P | €322.87 | |
|
QO116M100P | €311.57 | |
|
QO116M100PC | - | RFQ
|
 |
QO120M100P | €301.27 |
